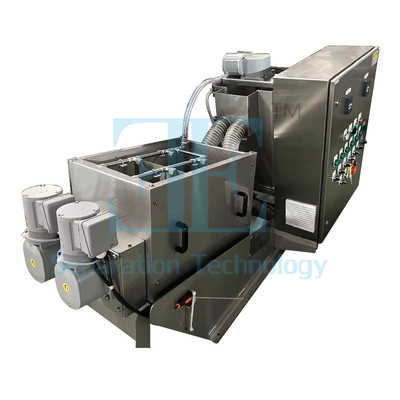

Screw Press Sludge Dewatering Machine 4.8-60m3/hr SUS304

Screw Press Sludge Dewatering Machine 4.8-60m3/hr SUS304
Screw Press Sludge Dewatering Machine 4.8-60m3/hr SUS304 Screw Press Sludge Dewatering Machine 4.8-60m3/hr SUS304 Screw Press Sludge Dewatering Machine 4.8-60m3/hr SUS304 Screw Press Sludge Dewatering Machine 4.8-60m3/hr SUS304 Screw Press Sludge Dewatering Machine 4.8-60m3/hr SUS304 Screw Press Sludge Dewatering Machine 4.8-60m3/hr SUS304

Large Image :  Screw Press Sludge Dewatering Machine 4.8-60m3/hr SUS304

Product Details:
Place of Origin: Shanghai
Brand Name: ECOPRO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US$19,968
Contact Now
Detailed Product Description
Productivity: 4.8-60m3/hr Weight: 2300 Kg
Capacity: 4.8-60m3/h Dried Sludge: 120-240kg/h
Moisture Content: 75-85% Material: SUS304
Size: 4240*1550*2190mm Core Components: Gearbox, Pressure Vessel, Pump, Engine, Motor
Rotation Speed: 2~4rpm Power Consumption: 0.1~0.01kwh/kg-DS
Sludge Moisture: 70-85% Gap Cleaning: Automatic
Operation Mode: Fully Automatic Pressure Type: Inner Pressure
Energy Efficiency: Low Energy Consumption
Highlight:

SUS304 sludge dewatering machine

,

screw press dewatering machine 60m3/hr

,

sludge dewatering machine with warranty

Moving Ring Filtering Device Automatic Cleaning System Dewatering Equipment Screw Press
Product Specifications
Attribute Value
Video Outgoing-Inspection Provided
Machinery Test Report Provided
Core Components Gearbox, Pressure vessel, Pump, Engine, motor
Warranty 1 Year
Productivity 4.8-60m3/hr
Weight 2300 kg
Capacity 4.8-60m3/h
Dried Sludge 120-240kg/h
Moisture Content 75-85%
Showroom Location Viet Nam, Philippines, Sri Lanka, Malaysia, Australia
Material SUS304
Size 4240*1550*2190mm
Applicable Industries Manufacturing Plant, Food & Beverage Factory, Farms, Energy & Mining, Industrial and Municipal Wastewater Treatment
Screw Press Introduction
The screw press offers high efficiency, low energy consumption, fully automatic control and stable operation. It directly and continuously reduces water content from secondary settling tanks, maintaining sludge moisture content between 70-85%. Its compact design reduces capital investment and saves floor space while minimizing odor and phosphorus release from sludge. This significantly improves the capacity of subsequent deep dewatering equipment.
Screw Press Sludge Dewatering Machine 4.8-60m3/hr SUS304 0
Screw Press Working Process
  1. The conditioned sludge flows into the filter chamber from the flocculation tank and is pushed toward the discharging end.
  2. As the gap between the shaft threads increases, water separates from the sludge and flows out through the gaps between moving and fixed rings.
  3. The movement of the rings automatically cleans the gaps, preventing machine blockage.
  4. Filtered sludge cakes are pushed forward by the shaft and discharged at the end.
Screw Press Sludge Dewatering Machine 4.8-60m3/hr SUS304 1 Screw Press Sludge Dewatering Machine 4.8-60m3/hr SUS304 2
Key Features
  • Simple process with high efficiency and power savings
  • Programmable settings for convenient and accurate operation
  • Precise chemical preparation and dosage reduces operational costs
Technical Advantages
  • Compact Design: Requires minimal installation space compared to other technologies
  • No Blockage: Self-cleaning mechanism handles oily sludge without clogging
  • Cost Efficient: Consumes only 0.1-0.01kwh/kg-DS (1/8 of belt filter press)
  • Automated Operation: Fully automatic control via electric cabinet
Applications
Municipal sewage Food wastewater Slaughter house Printing and dyeing Oil chemical industry Paper making Leather Pharmacy
Packaging
Screw Press Sludge Dewatering Machine 4.8-60m3/hr SUS304 3 Screw Press Sludge Dewatering Machine 4.8-60m3/hr SUS304 4 Screw Press Sludge Dewatering Machine 4.8-60m3/hr SUS304 5 Screw Press Sludge Dewatering Machine 4.8-60m3/hr SUS304 6
