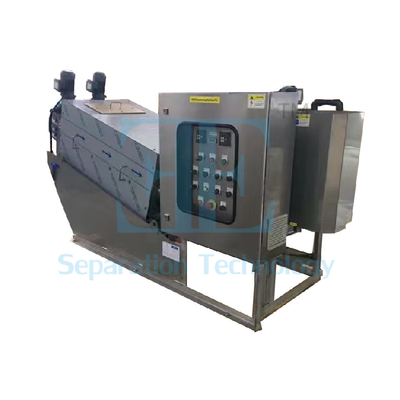

1kW Screw Press Sludge Dewatering Machine 0.8-12m3/h Capacity

1kW Screw Press Sludge Dewatering Machine 0.8-12m3/h Capacity
1kW Screw Press Sludge Dewatering Machine 0.8-12m3/h Capacity 1kW Screw Press Sludge Dewatering Machine 0.8-12m3/h Capacity 1kW Screw Press Sludge Dewatering Machine 0.8-12m3/h Capacity 1kW Screw Press Sludge Dewatering Machine 0.8-12m3/h Capacity 1kW Screw Press Sludge Dewatering Machine 0.8-12m3/h Capacity 1kW Screw Press Sludge Dewatering Machine 0.8-12m3/h Capacity

Large Image :  1kW Screw Press Sludge Dewatering Machine 0.8-12m3/h Capacity

Product Details:
Place of Origin: Shanghai
Brand Name: ECOPRO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $19,968
Contact Now
Detailed Product Description
Productivity: 0.8-12m3/h Weight: 470kg
Processing Type: Filtration Power: 1kW
Voltage: 220V, 380V, 110V Capacity: 0.8-12m3/h
Dried Sludge: 24-40kg/h Moisture Content: 75-85%
Core Components: Gearbox, Pressure Vessel, Pump, Bearing, Engine, Motor Rotation Speed: 2-4rpm
Power Consumption: 0.1-0.01kwh/kg-DS Sludge Stability: 70-85%
Energy Efficiency: 1/8 Of Belt Filter Press, 1/20 Of Centrifuge Operation Mode: Fully Automatic Control
Self-cleaning Feature: Yes
Highlight:

1kW screw press sludge dewatering machine

,

sludge dewatering machine 0.8-12m3/h capacity

,

screw press sludge dewatering with warranty

Environmental Professional Sludge Treatment Wastewater Treatment Sludge Dewatering Machine Screw Press
Product Specifications
Attribute Value
Video Outgoing-Inspection Provided
Machinery Test Report Provided
Core Components Gearbox, Pressure vessel, Pump, Bearing, Engine, motor
Warranty 1 Year
Productivity 0.8-12m³/h
Weight 470 kg
Processing Type Filtration
Power 1kW
Voltage 220V, 380V, 110V
Capacity 0.8-12m³/h
Dried Sludge 24-40kg/h
Moisture Content 75-85%
Screw Press Introduction
The screw press offers high efficiency, low energy consumption, fully automatic control and stable operation. It directly and continuously reduces water content from secondary settling tanks, producing dewatered sludge with stable moisture content of 70-85%. Its compact design reduces capital investment, saves floor space, minimizes odor and phosphorus release from sludge in concentration tanks, and significantly improves the capacity of subsequent deep dewatering equipment.

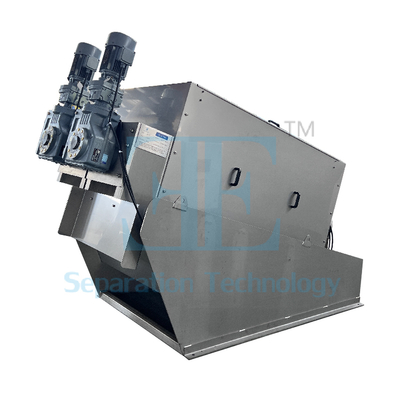

1kW Screw Press Sludge Dewatering Machine 0.8-12m3/h Capacity 0
Screw Press Working Process
  1. The conditioned sludge flows into the filter chamber from the flocculation tank and is pushed toward the discharging end.
  2. As the gap between the shaft threads increases, water separates from the sludge and flows out through the gaps between moving and fixed rings.
  3. The movement of rings continuously cleans the gaps, preventing machine blockage.
  4. Filtered sludge cakes are pushed forward by the shaft and finally discharged.

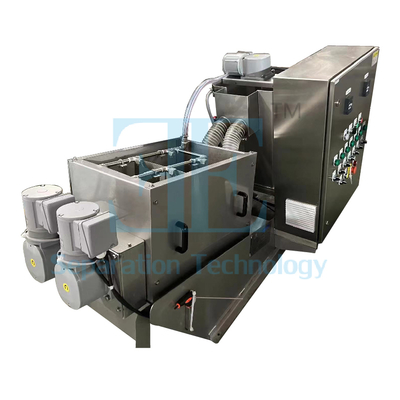

1kW Screw Press Sludge Dewatering Machine 0.8-12m3/h Capacity 1
Screw Press Fabrication Process

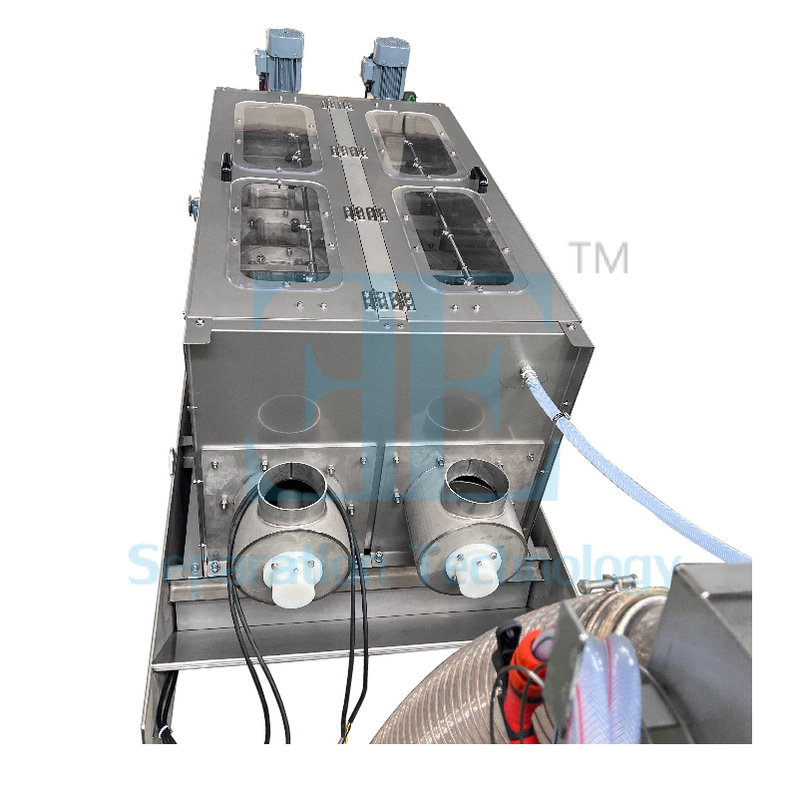

1kW Screw Press Sludge Dewatering Machine 0.8-12m3/h Capacity 2
Key Features
  • Simple process with high efficiency, power saving, and low investment
  • Programmable settings for convenient and accurate operation
  • Precise chemical preparation and dosage reduces operational costs
Technical Advantages
  • Compact Design: Requires minimal installation space compared to conventional technologies
  • Non-Clogging: Self-cleaning mechanism handles oily sludge without blockage or need for excessive flushing water
  • Energy Efficient: Consumes only 0.1-0.01kwh/kg-DS (1/8 of Belt Filter Press and 1/20 of Centrifuge)
  • Automated Operation: No filter clothes or easily blocked components; can be fully automated via control cabinet
Applications
Municipal sewage Food wastewater Slaughter house Printing and dyeing Oil chemical industry Paper making Leather Pharmacy
Packaging and Shipping

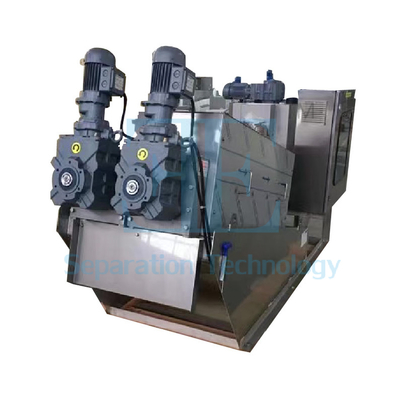

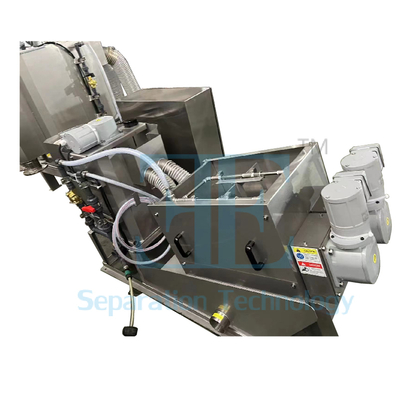

1kW Screw Press Sludge Dewatering Machine 0.8-12m3/h Capacity 3 1kW Screw Press Sludge Dewatering Machine 0.8-12m3/h Capacity 4 1kW Screw Press Sludge Dewatering Machine 0.8-12m3/h Capacity 5 1kW Screw Press Sludge Dewatering Machine 0.8-12m3/h Capacity 6
Global Partners
1kW Screw Press Sludge Dewatering Machine 0.8-12m3/h Capacity 7
