High Efficiency Industrial Reverse Osmosis System 200m3/H Ro Water Treatment Plant

Large Image : High Efficiency Industrial Reverse Osmosis System 200m3/H Ro Water Treatment Plant

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Ecopro

Payment & Shipping Terms:

Price:	$2,768.00/sets >=1 sets
Packaging Details:	Standard package is carton and wooden case. <br>Special package requirements we will pack as required, but the fees will be paid by customers.
Supply Ability:	500 Set/Sets per Year

Contact Now

Detailed Product Description

Condition:	New	Applicable Industries:	Hotels, Garment Shops, Manufacturing Plant
Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Peru, Saudi Arabia, Indonesia, India, Russia, Morocco, Kenya, South Korea, Chile, Colombia, Algeria, Romania, Kazakhstan, Ukraine, Nigeria, Malaysia	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Core Components:	Pressure Vessel, Pump, Engine, Motor, PLC
Warranty:	1 Year	Productivity:	1-200m3/h
Weight (KG):	300 Kg
Highlight:	High Efficiency Industrial Reverse Osmosis System , Industrial Reverse Osmosis System 200m3/H , 200m3/H Ro Water Treatment Plant

1-200m3/h Productivity Reverse Osmosis System for Water Treatment in Garment Shops

Product Description

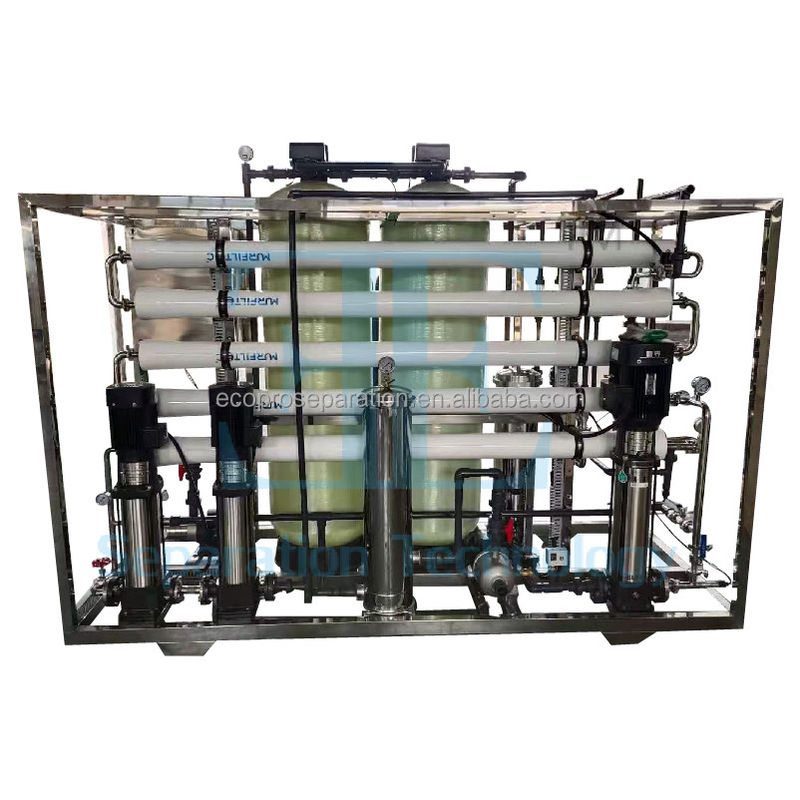

Reverse Osmosis System

Reverse Osmosis System RO water treatment system, also known as reverse osmosis water treatment system, is based on the principle that raw water passes through a reverse osmosis membrane under high pressure, and the solvent in the water diffuses from high concentration to low concentration to achieve separation, purification, and concentration. Due to its opposite direction of permeation in nature, it is called reverse osmosis.

Individual Equipment

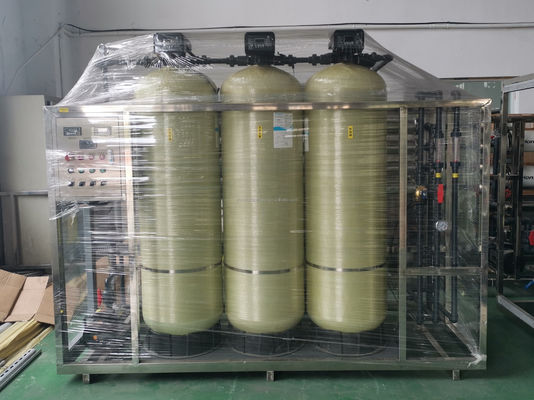

Quartz Sand Filter
Quariz sand filter is used for pre-treatment of raw water, reducing tha turbidity of the raw water to around 3 degrees and providing protection for subsequent equipment.

Activated Carbon Filter
Activated carbon filters are used for pretreatment of raw water. The treated water Tows through the activated carbon filter layer from top to bottom, utilizing the large spocific surface area and pores of activated carbon as well as its strong adsorption capacity for organic matter to adsorb residual chlorine and organic matter in the water, providing good inlet conditions for subsequent equipment.

Resin Filter
Resin filters are used to soften raw water, allowing the resin to adsorb calcium and magnesium ions (the main components that form scale) in the water, reducing the hardness of the water

Precision Filter
Precision filters utilize the separation characteristics.of membranes lo remove substances from water, with a diameter of 0.03-15 μm. Mainly removes fine particles, sub particles, and particulate material.

Filter Element
Filter cartridge membrane filtration has a relatively neat and uniform porous structure, which is a development of deep filtration technology, transitioning filtration from generally having relatively rough relative properties to precise absolute properties

Reverse Osmosis Membrane
The membrane of reverse osmosis is a composite structure, which consists of three layers: polyester reinforced non-woven fabric, polysulfone material porous intermediate support layer, and amide material ultra-thin separation layer. The ultra-thin separation layer is the truly functional layer with separation effect in reverse osmosis.

Advantages
(1) Low energy consumption;
(2) Low operating costs;
(3) Simple design and operation, short construction cycle;
(4) High efficiency and environmentally friendly.
