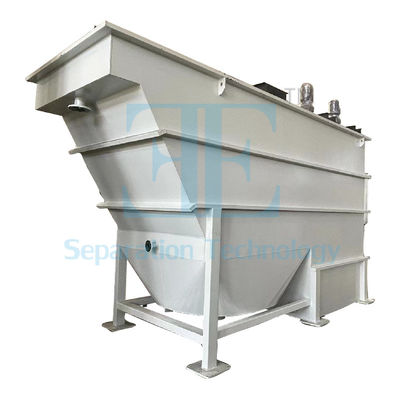

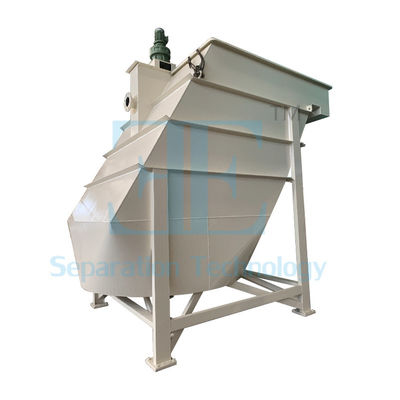

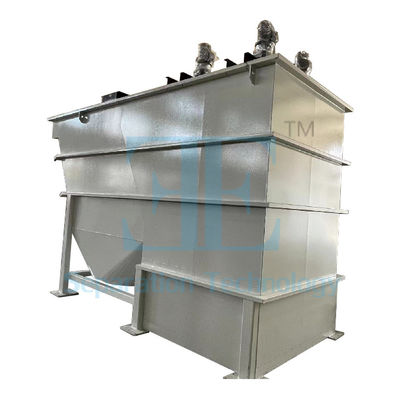

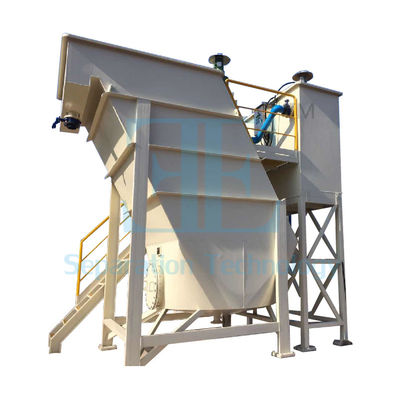

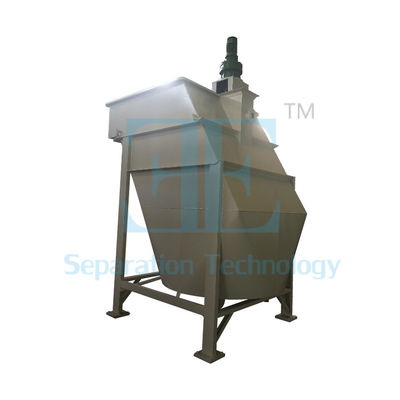

SUS304 SUS316 SUS316L Lamella Clarifier System For Sewage Treatment Plant

Lamella Clarifier System Introduction
The lamella clarifier system tank is a new type of high-efficiency sedimentation device developed on the basis of ordinary sloping
plate sedimentation. It is a kind of solid-liquid separation equipment with advanced technical performance, which is mainly used
as the primary sedimentation tank. When the sewage treatment plant is limited by the floor space, the existing sewage treatment
plant taps the potential or expands the treatment capacity.

The wastewater enters the pool from the inlet pipe and flows down through the middle water inlet chamber, it is reflected by the
deflector plate, and then enters the tilt plate through the inlet water distribution.As the wastewater flows upward, the solid
particles are settled on the parallel tilt plates assembly, and then slide into the sludge hopper at the bottom of the sediment
hopper.The clarified liquid exits the tilt plate and water collecting channel by top water outlet road, then gathering into outlet
sink via its adjustable weir plates. The water outlet tube in the tank will discharge the water outside.In the sludge hopper, the
sludge is concentrated and discharged through the sludge outlet.

Features
1. Small footprint. Only 1/5 of the length of the horizontal flow sedimentation tank, but improve the sedimentation efficiency by 3-5 times.
2. Highly integrated, easy to install, effectively save the project time.

3. Adopt inclined plate sedimentation, no blockage in
inclined pipe.

4. The accumulated sludge automatically falls into the slag bucket. Convenient to discharge the sludge, which reduces the labor intensity of slag removal.
5. Agitators, chemical tanks and mixing reaction tanks can be customized. Coagulation treatment for sewage at the same time, expanding the function.
6. Easy to operate, maintain and clean.

Advantages
1. New structure design. Double sedimentation area, greatly improve the sedimentation capacity;
2. Easy to settle. The inclined plate can re-coagulate the sediment;

3. Good sedimentation effect. Inclined plate sedimentation
creates laminar flow conditions;

4. Sedimentation sludge concentration increases;
5. Stably discharged sewage, and no sludge coverage;
6. Significantly save footprint.
7. Simple structure, no wearing parts, durable, and reduce the maintenance times.
8. Less power, energy saving.

9. Strong adaptability, it can adapt to different water quality treatment processes.

Applications
1. Surface water purification

2. Pulp reuse wastewater treatment

3. Metal processing wastewater treatment

4. Municipal phosphate wastewater treatment

5. Factory waste slag washing water treatment

6. Factory's low-capacity wastewater treatment

7. CPI process and wastewater treatment
