DN10-DN1500 Stainless Steel Static Mixer Gas Mixing Media Viscous Fluid Processing

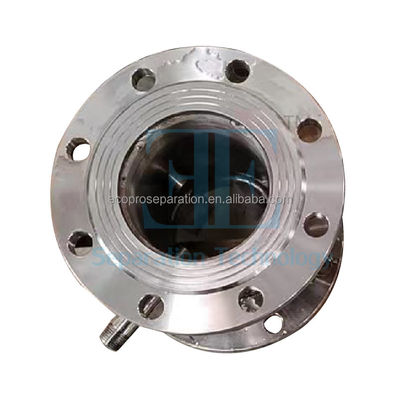

Static mixer is a device for the continuous mixing of fluid materials, without moving components. Normally the fluids to be mixed are liquid, but static mixers can also be used to mix gas streams, disperse gas into liquid or blend immiscible liquids. The energy needed for mixing comes from a loss in pressure as fluids flow through the static mixer. One design of static mixer is the plate-type mixer and another common device type consists of mixer elements contained in a cylindrical (tube) or squared housing. Mixer size can vary from about 6 mm to 6 meters diameter. Typical construction materials for static mixer components included stainless steel, polypropylene, Teflon, PVDF, PVC, CPVC and polyacetal.

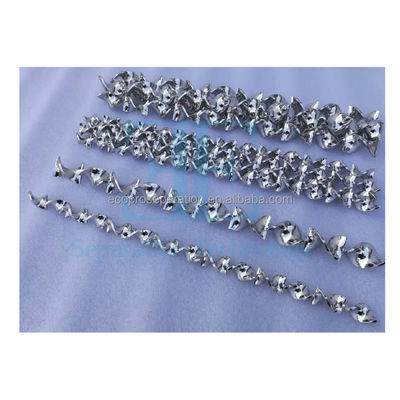

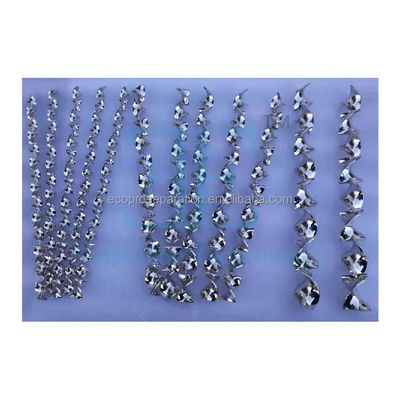

A specially designed spiral mixing monomer is in the mixing tube, and the two adjacent monomers at the beginning are fixed in the pipeline in opposite direction. The monomer itself does not rotate, and there is no rotating part in the mixer. Instead, the kinetic energy of the water flow is used as the mixing energy. When the fluid flows in the mixing monomer, each monomer divides the water flow into two parts.The total flow number of the mixer increases in geometric progression, which is called a paired split mixing. Due to the opposite direction of the adjacent mixing monomers, the water flow continues to generate vortices. This kind of vortex and anti-vortex enhance the mixing efficiency, and three kinds of mixing actions occur in the mixer, thus effectively mix different liquid media instantly.

metallurgy, injection molding, color matching, papermaking, pulp and chlorine mixing, solvent deasphalting, acid-base
