Municipal Wastewater Treatment Static Screening Stainless Steel Wedge Static Screen

Certification
China Shanghai Ecopro Environmental Engineering Co., Ltd. certification
China Shanghai Ecopro Environmental Engineering Co., Ltd. certification
I'm Online Chat Now

Municipal Wastewater Treatment Static Screening Stainless Steel Wedge Static Screen

Municipal Wastewater Treatment Static Screening Stainless Steel Wedge Static Screen
Municipal Wastewater Treatment Static Screening Stainless Steel Wedge Static Screen

Large Image :  Municipal Wastewater Treatment Static Screening Stainless Steel Wedge Static Screen

Product Details:
Place of Origin: Shanghai, China
Brand Name: ECOPRO
Payment & Shipping Terms:
Price: $2,050.00/sets 1-2 sets
Detailed Product Description
Condition: New Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops, Other
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri L Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Hot Product 2023
Warranty Of Core Components: 1 Year Core Components: Wedge Wire Screen
Material: Wooden Box, SUS304&316 Weight: 188kgs
Size: 1429*629*1898mm Warranty: 1 Year
Productivity: 5L/Hour Weight (KG): 188 Kg
Product Name: Static Screen Application: Industrial And Municipal Wastewater Treatment
Capacity: 5m3/h Mesh Size: 0.2mm
After Warranty Service: Video Technical Support Online Support Function: Filtering Suspended Matter&sediment
Highlight:

Stainless Steel Wedge Static Screen

,

Municipal Wastewater Treatment Static Screening

,

Static Screening Stainless Steel

Wooden Box Packaging Stainless Steel Wedge Wire Screen for Wastewater Pretreatment
Product Description

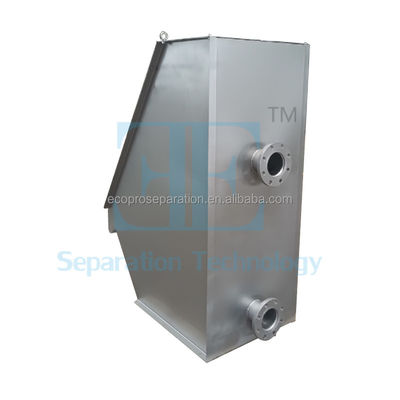

Municipal Wastewater Treatment Static Screening Stainless Steel Wedge Static Screen 0

Static screen is mainly used for the pretreatment of wastewater treatment,which can effectively remove most of the suspended solids in the wastewater and reduce the processing load of
subsequent processes, also used for solid-liquid separation and recovery of useful substances in induatrial wastewater treatment. It is an excellent non-powered device for filtering or recovering
solid or colloidal substances such as suspended solids, floating matter and sediment.

Static Screen Work Process

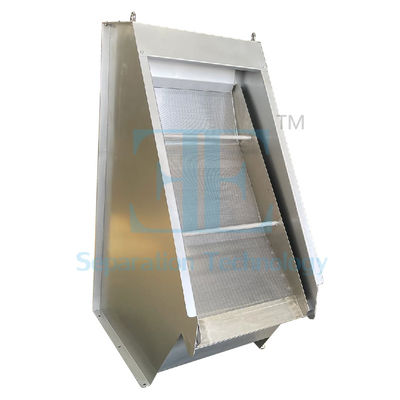

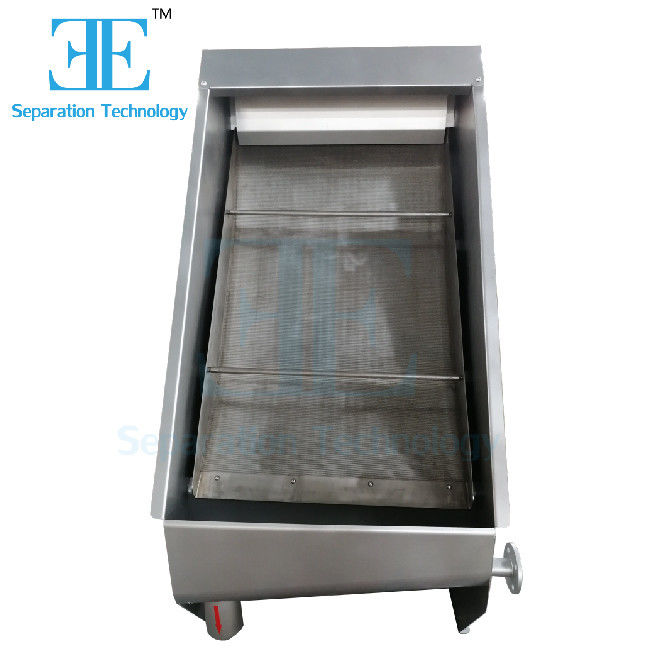

The main body of the static screen is a stainless steel curved or flat filter screen made of wedge-shaped steel rods. The wastewater to be treated passes through the weir and is evenly distributed to the inclined screen surface. Since the surface of the screen is small and smooth, the back gap is large, the drainage is smooth, it is difficult to block. The solid matter is trapped, and the filtered water flows out from the gap of the sieve plate. At the same time, under the action of hydraulic force, the solid matter is pushed to the lower end of the sieve plate to discharge, thereby achieving the purpose of solid-liquid separation.

Static Screen Advantages
1. High treatment capacity
2. Not easy to be blocked
3. Easy to clean and maintance
4. It no energy consumption
5. High efficiency and long life
