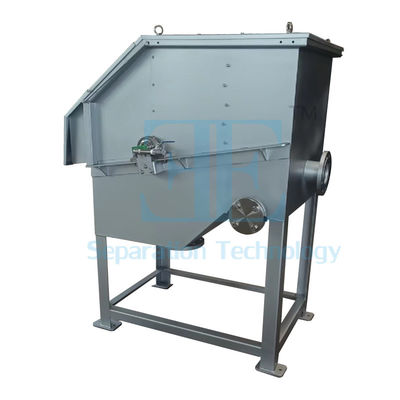

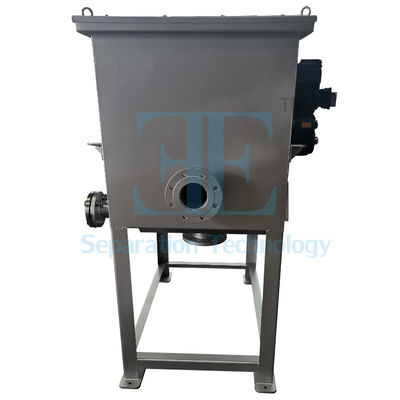

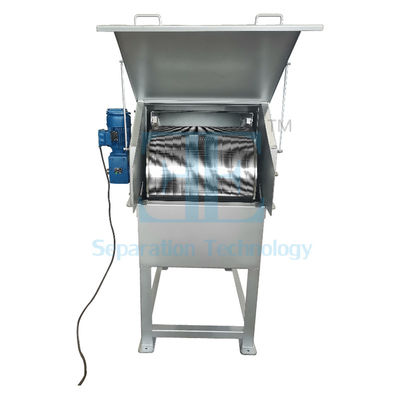

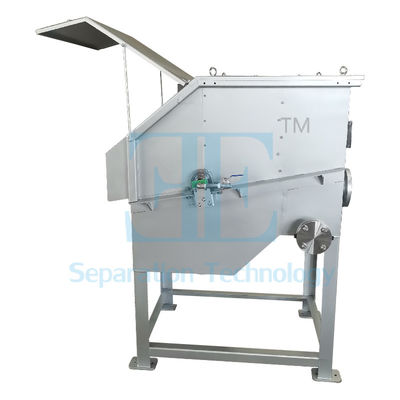

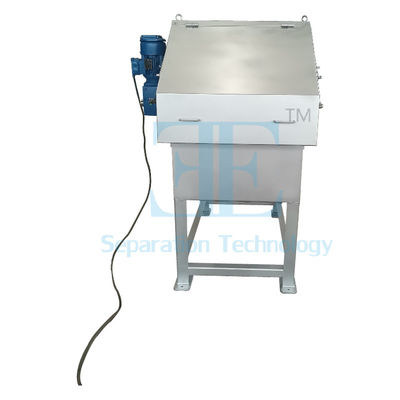

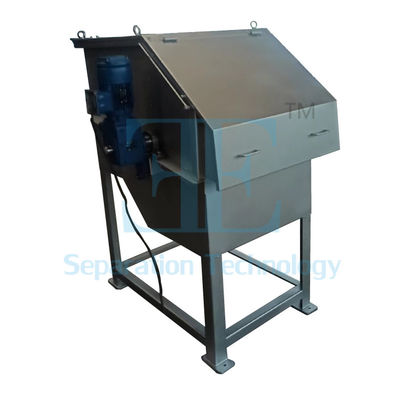

Durable Stainless Steel Rotary Drum Screen For TSS Separation In Wastewater Treatment

Durable Stainless Steel Rotary Drum Screen For TSS Separation In Wastewater Treatment
Durable Stainless Steel Rotary Drum Screen For TSS Separation In Wastewater Treatment Durable Stainless Steel Rotary Drum Screen For TSS Separation In Wastewater Treatment Durable Stainless Steel Rotary Drum Screen For TSS Separation In Wastewater Treatment Durable Stainless Steel Rotary Drum Screen For TSS Separation In Wastewater Treatment Durable Stainless Steel Rotary Drum Screen For TSS Separation In Wastewater Treatment Durable Stainless Steel Rotary Drum Screen For TSS Separation In Wastewater Treatment

Large Image :  Durable Stainless Steel Rotary Drum Screen For TSS Separation In Wastewater Treatment

Product Details:
Place of Origin: Shanghai, China
Brand Name: ECOPRO
Payment & Shipping Terms:
Price: $7,968.00/sets 1-2 sets
Contact Now
Detailed Product Description
Condition: New Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Construction Works , Energy & Mining, Food & Beverage Shops
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri L Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Hot Product 2023
Warranty Of Core Components: 1 Year Core Components: Pump, Motor
Size: 2298*1519*1652 Warranty: 1 Year
Productivity: 100L/Hour Weight (KG): 515 Kg
Product Name: Rotary Drum Screen Application: Industrial And Municipal Wastewater Treatment
Material: SUS304 Power: 0.75kw
Screen Size: 610*1600 Rotating Speed: 4-20
Mesh Size: 0.75mm Inlet Flange: DN250
Outlet Flange: DN350 Discharge Flange: DN150*2
Highlight:

Durable Stainless Steel Rotary Drum Screen

,

TSS Separation Rotary Drum Screen

,

Rotary Drum Screen Wastewater Treatment

Durable Stainless Steel Rotary Drum Screen For TSS Separation In Wastewater Treatment
Product Description
Durable Stainless Steel Rotary Drum Screen For TSS Separation In Wastewater Treatment 0

Product Introduction
Rotary Drum Screen Filter is one of the pretreatment solid separating devices used for small and medium wastewater treatment plants, and a device which can remove solid suspended matter continuously and effectively. In some wastewater treatments, 30% to 60% of the organic inorganic solid suspended matter will be remove after filtering, and reducing greatly the subsequent work load.


Advantages

1. The equipment are all made of stainless steel, corrosion resistance, compact structure, cover an area of an area small, easy installation, can be fixed directly with expansion bolts, and not need to do groove. Influent and effluent can be piped.
2.The gate is inverted trapezoidal section, making the slag is not easy to jams mesh filters.
3.It adopts variable speed motor control to keep it in the best working condition according to the inflow water flow.
4.The special rinsing device can brush a very small amount of impurities stuck on the surface of the grid. After the secondary rinsing, the mesh cylinder can achieve the best clearing effect. At the same time, a flushing device is set to flush the dirt attached to the mesh.



Working principle
Waste water (raw water) passes through the surface of the drum and enters the interior of the drum.
As the drum rotates, the filtrate flows out from the bottom of the drum.Suspended solids in the waste water remain on the surface of the drum and are removed with a scraper.

Applications

1.Municipal Sewage
2.Slaughter House
3.Metallurgical Industry Wastewater
4.Spraying Sewage
5.Printing & Dyeing Sewage
6.Metal-Processing Sewage
7.Mining Stone Wastewater
8.Electronic Sewage
Project for Reference
Durable Stainless Steel Rotary Drum Screen For TSS Separation In Wastewater Treatment 1
Product packaging
Durable Stainless Steel Rotary Drum Screen For TSS Separation In Wastewater Treatment 2
