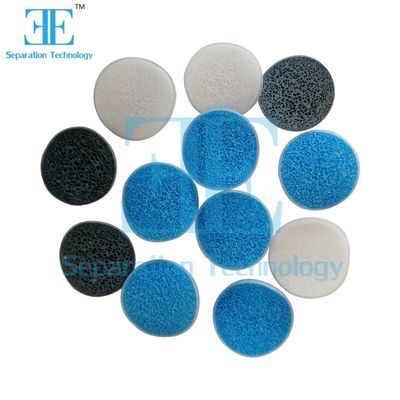

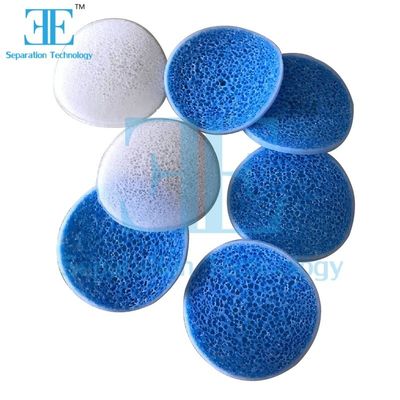

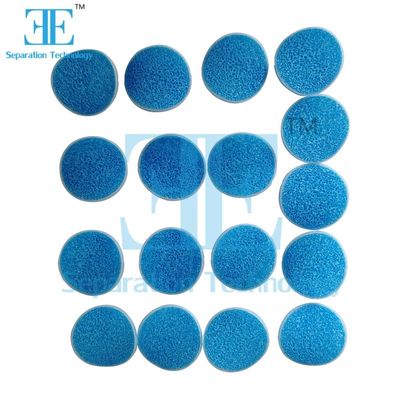

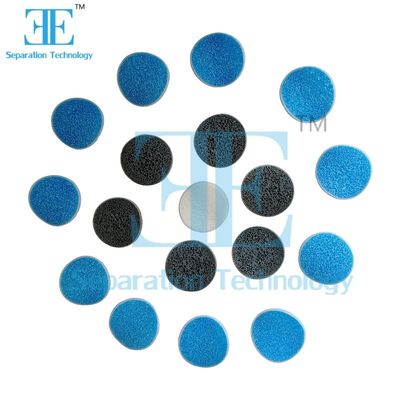

Mutag Biochip The Advanced Solution For Nitrification And Denitrification In Water Treatment

Large Image : Mutag Biochip The Advanced Solution For Nitrification And Denitrification In Water Treatment

Product Details:

Place of Origin:	Shanghai
Brand Name:	ECOPRO

Payment & Shipping Terms:

Minimum Order Quantity:	1m³
Price:	US$698
Packaging Details:	Standard package is carton and wooden case. <br>Special package requirements we will pack as required, but the fees will be paid by customers.
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000 Set/Sets per Year

Contact Now

Detailed Product Description

Highlight:

Mutag Biochip for Nitrification

Mutag Biochip for Denitrification

Mutag Biochip for Water Treatment

Mutag Biochip History:
Based on more than 20 years of experience in MBBR systems, MUTAG developed the Mutag BioChip in 2008, which forms the heart of today's MUTAG fluidized bed process - Mutag MBBR Process. Mutag BioChip is a high performance MBBR filler that provides a protected active surface area of >5,500 m2/m3 to immobilize microorganisms responsible for different biochemical water treatment processes. Its application has a very high decontamination rate and reliable process stability.

Product Information:

Product name	Mutag BioChip 30™
Application	COD/BOD removal,nitrification,denitrification ANAMMOX process
Active surface area (protected)	up to 5500m2/m3
Bulk weight (net)	165.00kg/m3+-2%
Color	white
Shape	round, paraboloid,with ptrotective outer ring
Material	PE virgin
Diameter	30.0mm
Material thickness	approx. 1.1mm
Specific gravity	approx. 0.95kg/l (without biofilm)
Package	bigbags, each 255kg net=1.5m3 optional (on request only): small bags,each 28.33kg net=1/6 m3

Mutag Biochip Function:
In order to comply with the water quality required by fish or other aquatic creatures, the organic contaminants and the nitrogen compounds to be found in the water mainly as ammonium have to be removed. Hence, the reduction of nitrogen down to a level which is nonhazardous to the fish is one of the major tasks of the treatment system in recirculating aquaculture systems. The "Mutag BioChip™ RAS Process" is perfectly suitable for this purpose.

Mutag Biochip Advantages:

1. High Efficiency: large amount of biomass/microorganism

2. Non-clogging: self-cleaning effect

3. Durability: constant light weight, outer protection ring

4. Smaller carrier amount

5. Lower mixing energy

6. Smaller tank/reactor size

7. Potential for future upgrade

8. Cost-saving

Mutag Biochip Applications:
1. BOD/COD removal
2. Nitrification
3. Denitrification
4. ANAMMOX

5. Municipal/domestic sewage
6. Industrial wastewater
7. Aquaculture industry

8. Pulp and paper industry
9. Chemical industry
10. Coke and steel industry
11. Petro and oil industry
12. Food and beverage industry
13. Textile industry
