Stainless Steel Static Mixer Durable and Corrosion-Resistant Mixing Solution

All Products
Dissolved Air Flotation (73)
Sludge Dewatering Machine (48)
RO System (36)
Industrial Screen (43)
Polymer Dosing System (27)
Lamella Clarifier System (35)
Static Mixer (42)
Mutag Biochip (19)
Certification
China Shanghai Ecopro Environmental Engineering Co., Ltd. certification
China Shanghai Ecopro Environmental Engineering Co., Ltd. certification
I'm Online Chat Now

Stainless Steel Static Mixer Durable and Corrosion-Resistant Mixing Solution

Stainless Steel Static Mixer Durable and Corrosion-Resistant Mixing Solution
Stainless Steel Static Mixer Durable and Corrosion-Resistant Mixing Solution

Large Image :  Stainless Steel Static Mixer Durable and Corrosion-Resistant Mixing Solution

Product Details:
Place of Origin: Shanghai
Brand Name: ECOPRO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US$529
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Installation: Easy Pressure Rating: Up To 1500 PSI
Warranty: 1 Year Maximum Size: 6000mm
Usage: Mixing Process Machinery Test Report: Provided
Inner Diameter: 5.3mm Mixing Media: Acid, Liquid, Water, Gas
Application: Liquid-Liquid Mixing Marketing Type: Hot Product 2022
Temperature Range: Up To 500°F Mixing Elements: Helical Or Straight
Productivity: 1000L/Hour Minimum Size: 6mm
Port: Shanghai
Highlight:

Corrosion-Resistant Static Mixer

,

Stainless Steel Static Mixer

,

Durable Static Mixer

Mixers, Chemical Mixer, Agitator, Inline Static Mixer
Static Mixer Description
Static mixer is a device for the continuous mixing of fluid materials, without moving components. Normally the fluids to be mixed are liquid, but static mixers can also be used to mix gas streams, disperse gas into liquid or blend immiscible liquids. The energy needed for mixing comes from a loss in pressure as fluids flow through the static mixer. One design of static mixer is the plate-type mixer and another common device type consists of mixer elements contained in a cylindrical (tube) or squared housing. Mixer size can vary from about 6 mm to 6 meters diameter. Typical construction materials for static mixer components included stainless steel, polypropylene,PVDF, PVC, CPVC and polyacetal.

Static Mixer Work Process

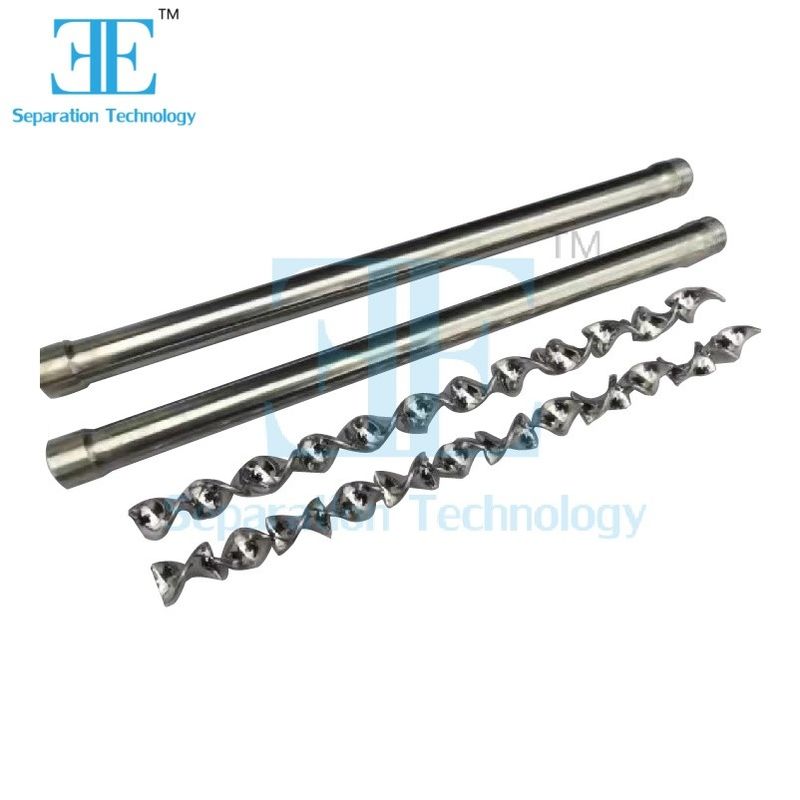

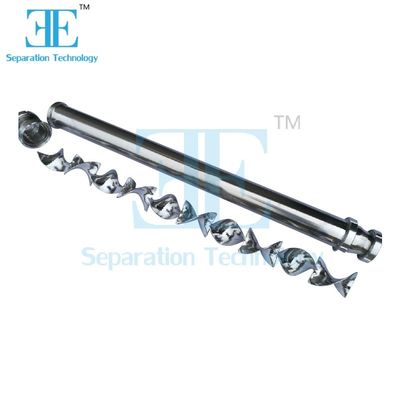

A specially designed spiral mixing monomer is in the mixing tube, and the two adjacent monomers at the beginning are fixed in the pipeline in opposite direction. The monomer itself does not rotate, and there is no rotating part in the mixer. Instead, the kinetic energy of the water flow is used as the mixing energy. When the fluid flows in the mixing monomer, each monomer divides the water flow into two parts.The total flow number of the mixer increases in geometric progression, which is called a paired split mixing. Due to the opposite direction of the adjacent mixing monomers, the water flow continues to generate vortices. This kind of vortex and anti-vortex enhance the mixing efficiency, and three kinds of mixing actions occur in the mixer, thus effectively mix different liquid media instantly.

Static Mixer Advantages
1. Maintenance free.
2. No extra power consumption.
3. Fast and complete reaction.
4. Minimum space requirement.
5. Low investment and easy installation.


Applications

metallurgy, injection molding, color matching, papermaking, pulp and chlorine mixing, solvent deasphalting, acid-base
neutralization, asphalt blending, oil blending, and aldonic pumping Extraction, industrial naphthalene dephenolization, liquid hydrocarbon desulfurization, polymer materials mixed color matching, gasoline, diesel, oil reconciliation, salt water
neutralization, acid-base neutralization, gas mixing.
Chemical, petroleum, pharmaceutical, food, fine chemical, plastic environmental protection, synthetic fiber, mining and

Tag:

static mixer water treatment,

stainless steel static mixer,

industrial static mixer
