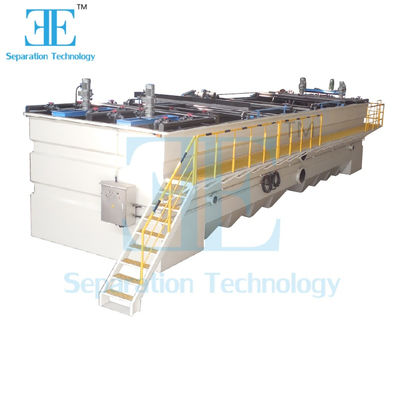

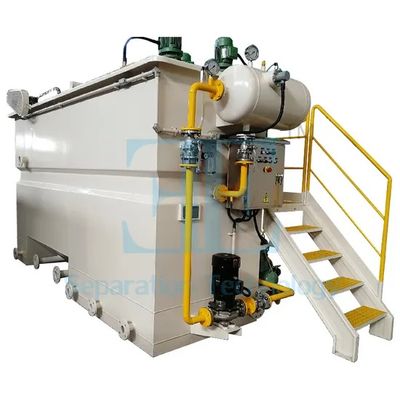

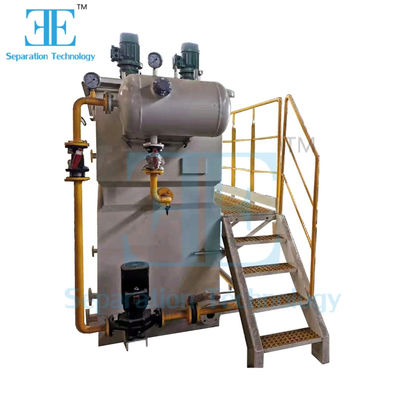

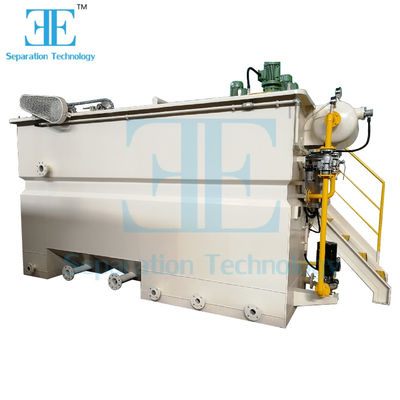

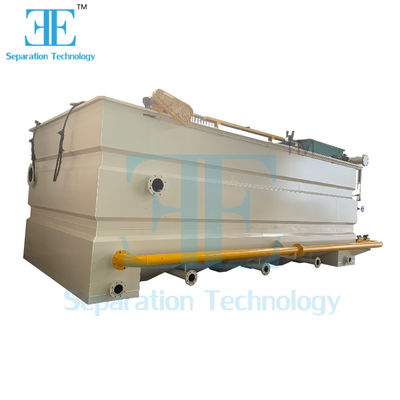

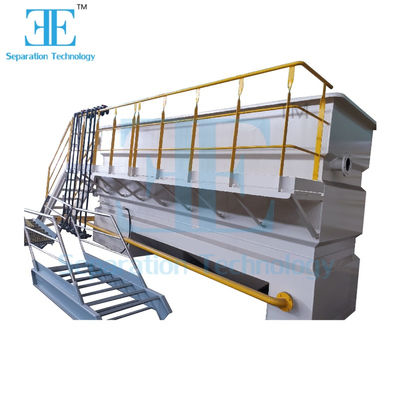

200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight

200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight
200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight 200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight 200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight 200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight 200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight 200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight

Large Image :  200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight

Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 22968
Contact Now
Detailed Product Description
Model NO.: DAF Treating Capacity: 200 M3/H
Dimension: 17600*3800*2720 Mm Weight: 18500 Kgs
Production Capacity: 1000sets/Year SS Content: Ppm Or Mg/L
Oil Content: Ppm Or Mg/L Grease Content: Ppm Or Mg/L
Fat Content: Ppm Or Mg/L FOG Content: Ppm Or Mg/L
PH Range: 6~9 BOD Content: Ppm Or Mg/L
COD Content: Ppm Or Mg/L Micro Bubbles: Generating
Automatic Slagging: Liquid Level Controlled
Highlight:

200 M3/H Dissolved Air Flotation

,

17600*3800*2720 mm DAF System

,

18500 Kgs Wastewater Treatment System

Ecopro Sewage Treatment Units Landscape Water Purification System Sedimentation DAF Dissolved Air Flotation Tank
DAF System and Dissolved Air Flotation for Waste Water Treatment
Dissolved Air Flotation (DAF) is a water treatment process that clarifies wastewaters by removing suspended matter such as oil or solids. The process involves dissolving air in the water under pressure and releasing it at atmospheric pressure in a flotation tank, creating microbubbles that adhere to suspended particles, causing them to float to the surface for removal.
DAF System Work Process
  1. Wastewater enters RT1 (coagulation reaction tank) and RT2 (flocculation reaction tank) from the equalization tank through a lift pump, coagulating with PAC and flocculating with PAM to form flocs.
  2. The wastewater and dissolved water enter the reaction zone of the DAF tank where microbubbles adhere to flocs, forming solid particles with density less than water.
  3. These particles float to the surface where scum is scraped to the slag tank.
  4. Clean water is collected through the water collecting pipe, with most discharged and a small portion recirculated to form dissolved water.
200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight 0
DAF System Fabrication Process
200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight 1
Technical Data
200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight 2
DAF System Features
  • Microbubbles generating system
  • Subsurface capture technology
  • Automatic slagging controlled by liquid level
  • Non-clogging releasing with high efficiency
Application of DAF System
  • Municipal Sewage
  • Slaughter House wastewater
  • Metallurgical Industry Wastewater
  • Spraying Sewage
  • Printing & Dyeing Sewage
  • Metal-Processing Sewage
  • Mining Stone Wastewater
  • Electronic Sewage
How to Select the Right Model
Consider these factors when selecting a DAF system:
  • Wastewater type (dairy, car washing, slaughter house, food processing, river water, etc.)
  • SS content (ppm or mg/L)
  • Oil & Grease & Fat (FOG) content (ppm or mg/L)
  • PH level (6-9 preferred; consider PH adjustment tank for corrosive substances)
  • BOD and COD levels (ppm or mg/L)
200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight 3
Packaging Options
200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight 4
