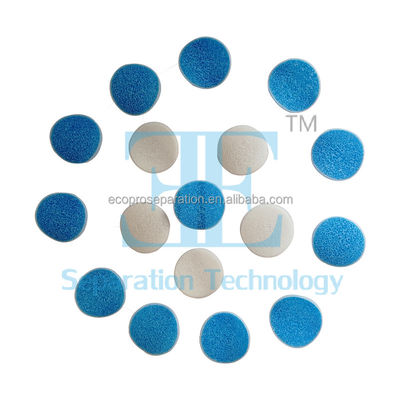

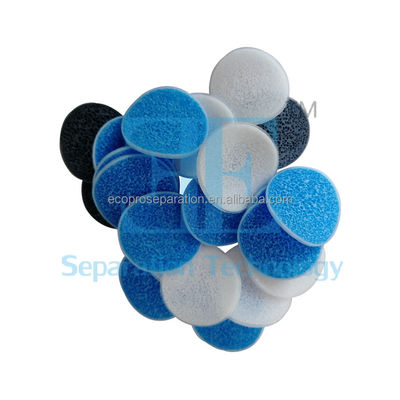

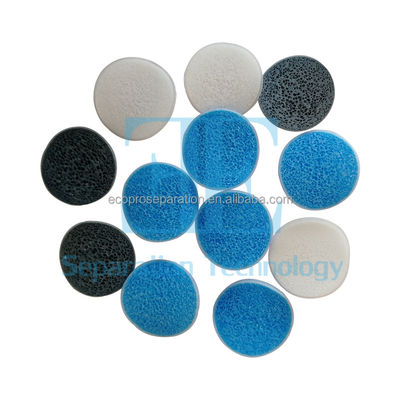

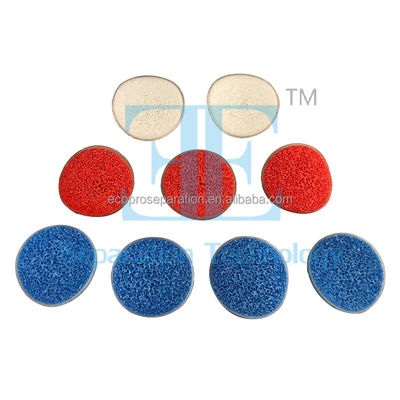

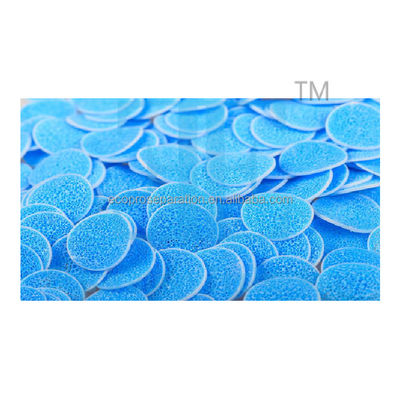

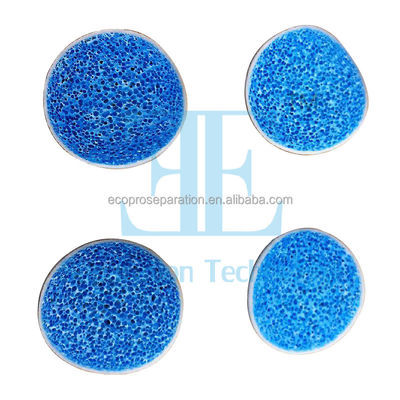

Dia 30mm Mutag Biochip For Improved Performance In Biofilm Reactors

Large Image : Dia 30mm Mutag Biochip For Improved Performance In Biofilm Reactors

Product Details:

Place of Origin:	Shanghai, China, Germany
Brand Name:	ECOPRO

Payment & Shipping Terms:

Price:	$698.00/cubic meters >=1 cubic meters
Packaging Details:	Standard package is carton and wooden case. <br>Special package requirements we will pack as required, but the fees will be paid by customers.
Supply Ability:	5000 Set/Sets per Year

Contact Now

Detailed Product Description

Applicable Industries:	Hotels, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops, Water And Wastewater Treatment	Showroom Location:	Viet Nam, Philippines, Indonesia, Sri Lanka, Malaysia, Australia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product 2022	Warranty Of Core Components:	Not Available
Core Components:	Pump, Engine, Motor	Material:	PE Virgin Material
Weight:	165kg/M3	Warranty:	More Than 5 Years
Productivity:	500L/Hour	Weight (KG):	165 Kg
Active Surface Area (Protected):	Up To 5500m2/m3	Diameter:	30.0mm
Material Thickness:	Approx.1.1mm	Specific Gravity:	Approx.0.95kg/l(without Biofilm)
Color:	White Blue	Port:	Shanghai
Highlight:	Biofilm Reactors Mutag Biochip , Dia 30mm Mutag Biochip

Specific Gravity 0.95kg/l Mutag Biochip for Improved Performance in Biofilm Reactors

Mutag Biochip History

Based on more than 20 years of experience in MBBR systems, MUTAG developed the Mutag BioChip in 2008, which forms the heart of today's MUTAG fluidized bed process - Mutag MBBR Process. Mutag BioChip is a high performance MBBR filler that provides a protected active surface area of >5,500 m2/m3 to immobilize microorganisms responsible for different biochemical water treatment processes. Its application has a very high decontamination rate and reliable process stability.

Mutag BioChip Function

In order to comply with the water quality required by fish or other aquatic creatures, the organic contaminants and the nitrogen compounds to be found in the water mainly as ammonium have to be removed. Hence, the reduction of nitrogen down to a level which is nonhazardous to the fish is one of the major tasks of the treatment system in recirculating aquaculture systems. The "Mutag BioChip™ RAS Process" is perfectly suitable for this purpose.

Mutag Biochip Advantages

1. High Efficiency: large amount of biomass/microorganism

2. Non-clogging: self-cleaning effect

3. Durability: constant light weight, outer protection ring

4. Smaller carrier amount

5. Lower mixing energy

6. Smaller tank/reactor size

7. Potential for future upgrade

8. Cost-saving

Mutag Biochip Applications

1. BOD/COD removal
2. Nitrification
3. Denitrification
4. ANAMMOX

5. Municipal/domestic sewage
6. Industrial wastewater
7. Aquaculture industry

8. Pulp and paper industry
9. Chemical industry
10. Coke and steel industry
11. Petro and oil industry
12. Food and beverage industry
13. Textile industry
