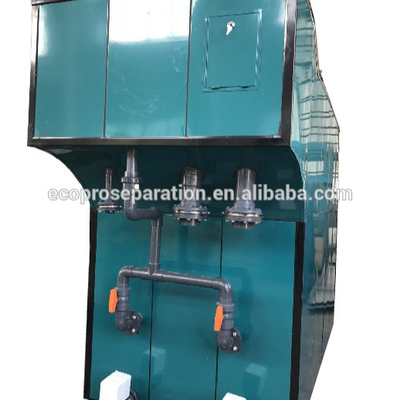

Energy Efficient 20m3/Hr Industrial Electrocoagulation System For Wastewater Treatment

The electrocoagulation system is an advanced wastewater treatment solution that utilizes metal hydroxide produced by soluble metal anodes during flocculation to effectively remove contaminants from water. The system primarily uses aluminum and iron anodes, which are cost-effective and readily available materials.

The system operates through electrochemical reactions:

• Electrochemical reaction: Fe→Fe²⁺+2e
• Anodizing reaction: 2OH⁻→2[O]+2e→O₂+2e (nascent oxygen [O] provides strong oxidation)
• Cathode reduction: 2H⁺+2e→2[H]→H₂ (nascent hydrogen breaks chemical bonds)

These oxidation and reduction functions occur continuously on the electrode plates, providing continuous treatment capability.

• Wide power supply adaptability (220V-480VAC range)
• Embedded isolated voltage circuit for electrical safety
• Comprehensive protection systems (phase loss, overload, overcurrent, etc.)
• Automatic ion state detection for current/voltage adjustment
• Energy efficient - produces Fe(OH)₂ and Fe(OH)₃ coagulants naturally
• No polymer additives required
• Continuous treatment process with high SS removal efficiency
