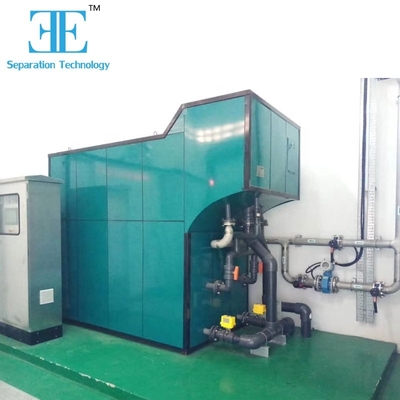

Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment

Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment
Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment

Large Image :  Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment

Product Details:
Place of Origin: Shanghai, China
Brand Name: ECOPRO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $36,897
Contact Now
Detailed Product Description
Productivity: 5m3/h Weight: 1900 Kg
Processing Type: Filtration Power: 1kW
Voltage: 220V, 380V, 110V Capacity: 5m3/h
Electrode Weight: 1900 Kg Empty Weight: 1900 Kg
Operation Weight: 7800 Kg Core Components: Motor
Power Supply Range: 220V-480VAC Anode Material: Aluminum, Iron
Current Adjustment: Automatic Voltage Adjustment: Automatic
Energy Saving Feature: No Polymer Required
Highlight:

Smart Automation electrocoagulation wastewater system

,

electrocoagulation treatment system industrial

,

electrocoagulation system for wastewater treatment

5m³/h Electrocoagulation System for Industrial Wastewater Treatment
Key Specifications
Attribute Value
Productivity 5m³/h
Weight 1900 kg
Power 1kW
Voltage 220V, 380V, 110V
Power Supply Range 220V-480VAC
Anode Material Aluminum, Iron
Current Adjustment Automatic
Voltage Adjustment Automatic
System Overview
Our electrocoagulation system is an advanced wastewater treatment solution that utilizes metal hydroxide produced by soluble metal anodes during flocculation to effectively remove contaminants. The system employs readily available and cost-effective anode materials like aluminum and iron.
Fabrication Process

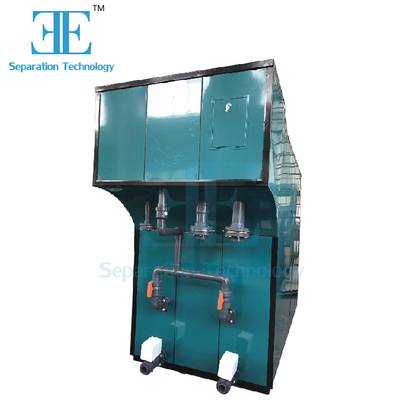

Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment 0 Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment 1
Working Principle

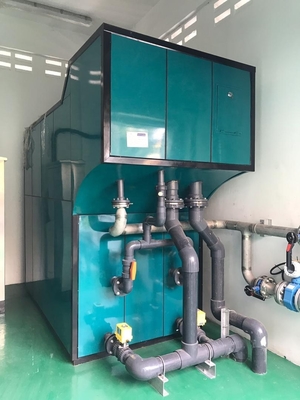

Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment 2 Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment 3
The system operates through electrochemical reactions:
• Fe→Fe²⁺+2e (Anodic dissolution)
• 2OH⁻→2[O]+2e→O₂+2e (Oxidation)
• 2H⁺+2e→2[H]→H₂ (Reduction)
These continuous oxidation and reduction reactions on the plates provide effective contaminant removal.
Key Features
  • Wide power adaptability: Operates within 220V-480VAC range
  • Enhanced safety: Embedded isolated voltage circuit with comprehensive protection (phase loss, overload, overcurrent, etc.)
  • Smart automation: Automatically detects water ion state and adjusts current/voltage accordingly
  • Energy efficient: Utilizes Fe(OH)₂ and Fe(OH)₃ as natural coagulants, eliminating need for polymer additives

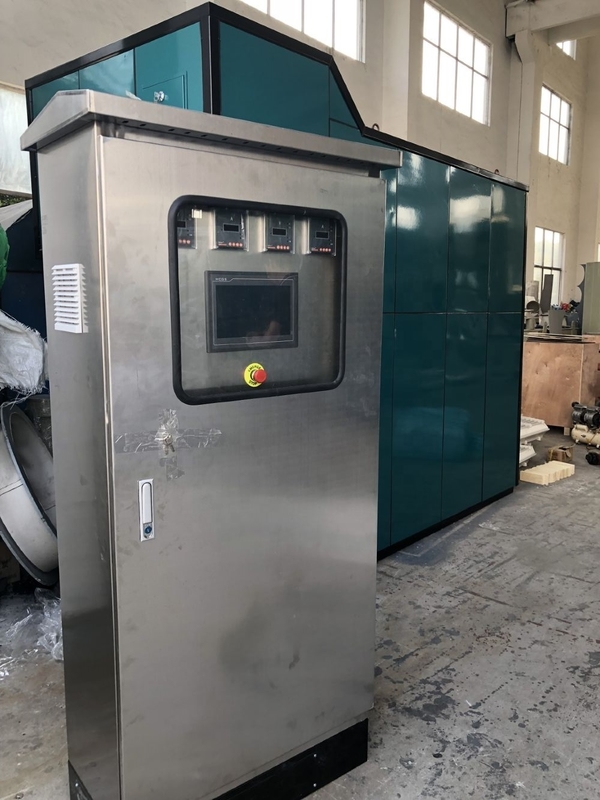

Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment 4
Reference Installation

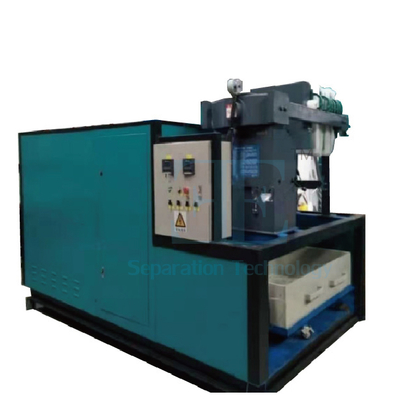

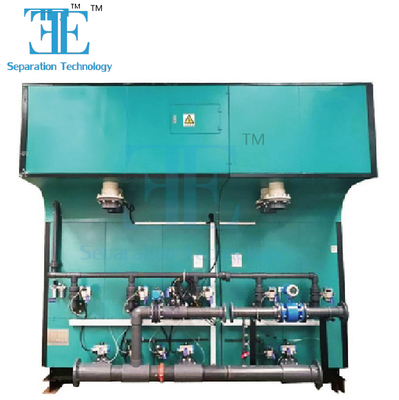

Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment 5 Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment 6
