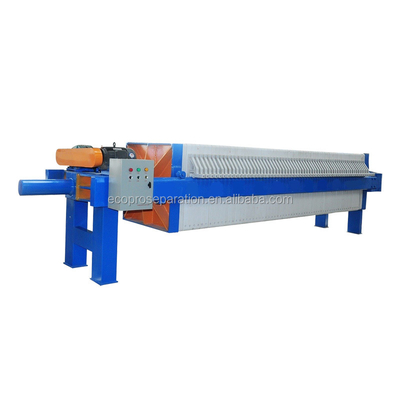

Manual Hydraulic Filter Press 6m2 for Sludge Dewatering 220V-415V

Manual Hydraulic Filter Press 6m2 for Sludge Dewatering 220V-415V
Manual Hydraulic Filter Press 6m2 for Sludge Dewatering 220V-415V Manual Hydraulic Filter Press 6m2 for Sludge Dewatering 220V-415V Manual Hydraulic Filter Press 6m2 for Sludge Dewatering 220V-415V Manual Hydraulic Filter Press 6m2 for Sludge Dewatering 220V-415V Manual Hydraulic Filter Press 6m2 for Sludge Dewatering 220V-415V Manual Hydraulic Filter Press 6m2 for Sludge Dewatering 220V-415V

Large Image :  Manual Hydraulic Filter Press 6m2 for Sludge Dewatering 220V-415V

Product Details:
Place of Origin: Shanghai, China
Brand Name: ECOPRO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now
Detailed Product Description
Automatic Grade: Manual Voltage: 220V-415V
Power: 2.2kw Weight: 860
Dimension: 2200*700*900mm Filter Area: 6m2
Plate Size: 500*500mm Chamber Volume: 91L
Plate Quantity: 9 Filter Pressure: >0.6Mpa
Frame Material: Base, Push Plate, Girder Filter Plates: Installed On Girder
Filter Cloth: Sandwiched Between Plates Pressing System: Hydraulic
Control System: Electric Control Cabinet
Highlight:

manual hydraulic filter press 6m2

,

sludge dewatering machine 220V-415V

,

hydraulic filter press for sludge

Hydraulic Filter Press Machine for Sludge Dewatering
Product Specifications
Attribute Value
Condition New
Automatic Grade Manual
Voltage 220V-415V
Power 2.2kw
Weight 860kg
Dimensions (L×W×H) 2200×700×900mm
Warranty 1 Year
After-sales Service Field installation, commissioning and training
Applicable Industries Municipal and Industrial Wastewater Treatment
Filter Area 6m²
Plate Size 500×500mm
Chamber Volume 91L
Plate Quantity 9
Filter Pressure >0.6Mpa
Product Overview

The hydraulic filter press is an efficient sludge dewatering machine designed for wastewater treatment applications. The system consists of a sturdy frame, filter plates, pressing system, and electric control cabinet for precise operation control.

Key Components

Frame: Constructed with base, push plate and girder to support pressing device and filter plates.

Filter Plates: Installed between tail plate and push plate with filter cloth for effective dewatering.

Control System: Electric control cabinet manages dewatering time, pump pressure, and treatment capacity.

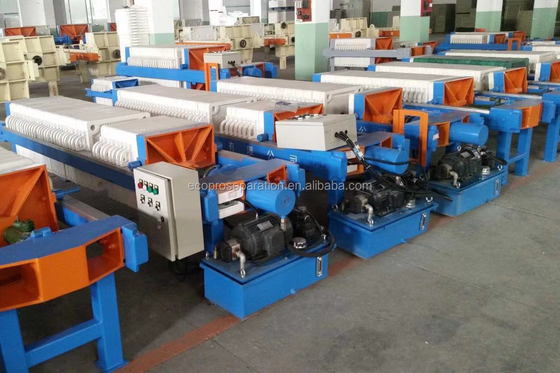

Manual Hydraulic Filter Press 6m2 for Sludge Dewatering 220V-415V 0

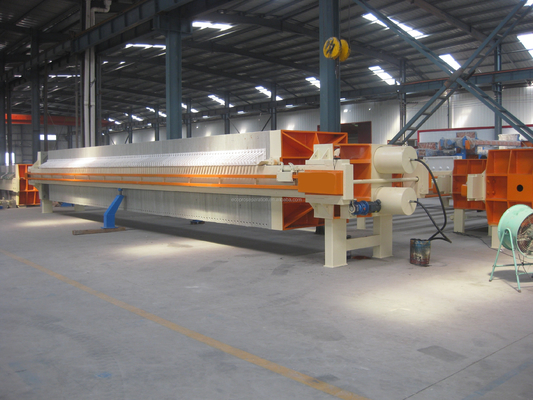

Manual Hydraulic Filter Press 6m2 for Sludge Dewatering 220V-415V 1

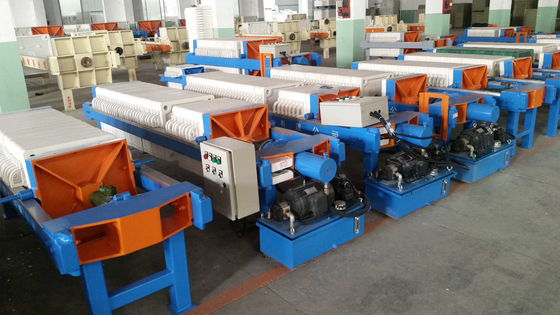

Manual Hydraulic Filter Press 6m2 for Sludge Dewatering 220V-415V 2
Industrial Applications
  • Municipal sewage treatment
  • Slaughter house wastewater
  • Metallurgical industry wastewater
  • Spraying sewage treatment
  • Printing & dyeing sewage
  • Metal-processing sewage
  • Mining stone wastewater
  • Electronic sewage treatment
Reference Projects

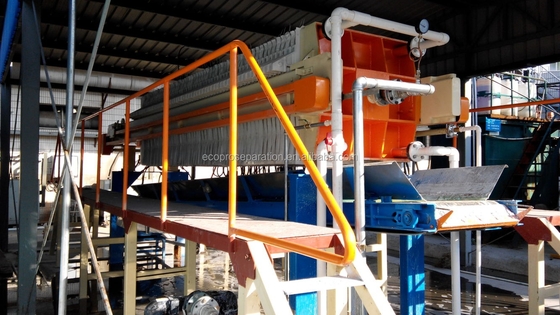

Manual Hydraulic Filter Press 6m2 for Sludge Dewatering 220V-415V 3

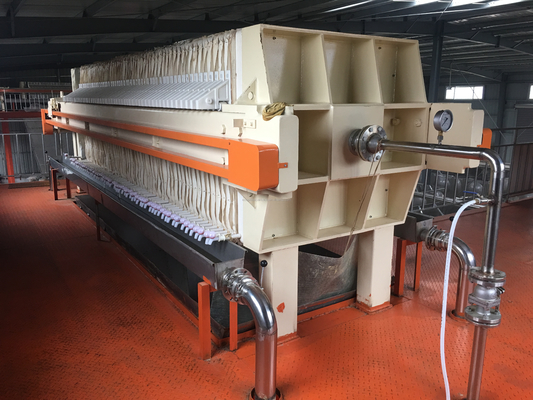

Manual Hydraulic Filter Press 6m2 for Sludge Dewatering 220V-415V 4
Packaging & Shipping
Manual Hydraulic Filter Press 6m2 for Sludge Dewatering 220V-415V 5
Manual Hydraulic Filter Press 6m2 for Sludge Dewatering 220V-415V 6
