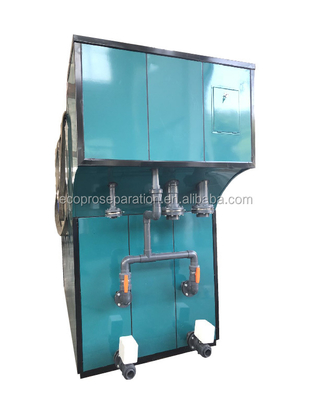

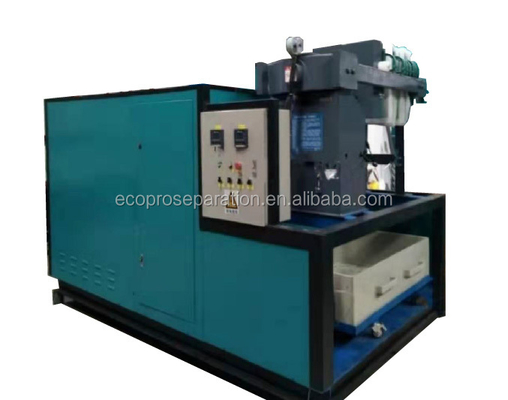

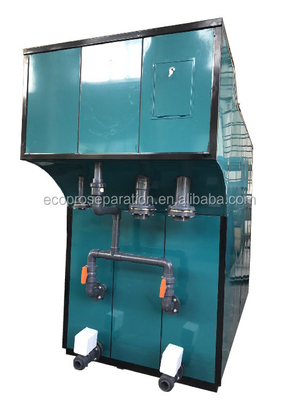

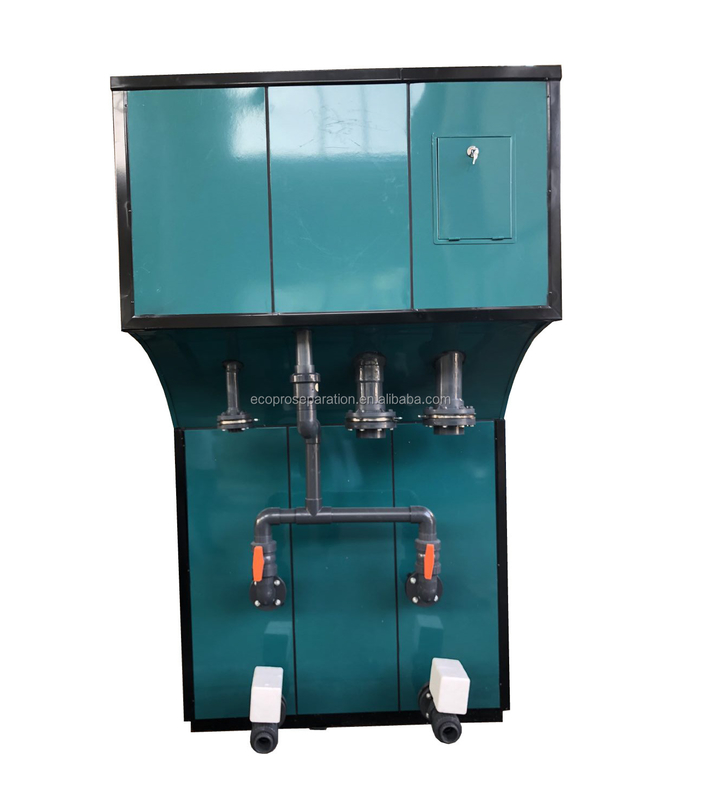

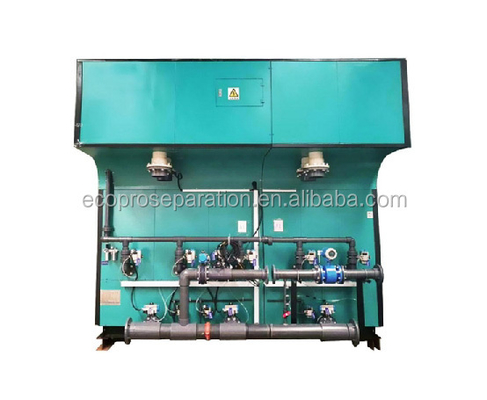

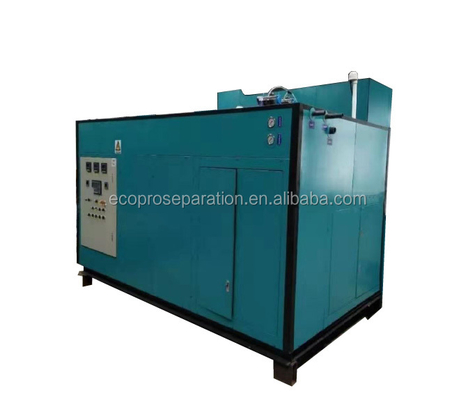

Electrocoagulation System 0.5m3/hr Wastewater Treatment with Aluminum Iron Anodes

Electrocoagulation System 0.5m3/hr Wastewater Treatment with Aluminum Iron Anodes
Electrocoagulation System 0.5m3/hr Wastewater Treatment with Aluminum Iron Anodes Electrocoagulation System 0.5m3/hr Wastewater Treatment with Aluminum Iron Anodes Electrocoagulation System 0.5m3/hr Wastewater Treatment with Aluminum Iron Anodes Electrocoagulation System 0.5m3/hr Wastewater Treatment with Aluminum Iron Anodes Electrocoagulation System 0.5m3/hr Wastewater Treatment with Aluminum Iron Anodes Electrocoagulation System 0.5m3/hr Wastewater Treatment with Aluminum Iron Anodes

Large Image :  Electrocoagulation System 0.5m3/hr Wastewater Treatment with Aluminum Iron Anodes

Product Details:
Place of Origin: China
Brand Name: ECOPRO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now
Detailed Product Description
Material: DAF-200 Size: 1000*650*1300
Power: 3 Treating Capacity: 0.5 M3/hr
Electrode Weight: 0.3 Tons Empty Weight: 0.3 Tons
Operation Weight: 0.8 Tons Voltage Range: 220V-480VAC
Power Supply: Embedded Isolated Voltage Circuit Control Signal: European Detachable Terminals
Automatic Control: Detects Ion State Energy Saving: No Polymer Required
Anode Material: Aluminum, Iron Oxidation Function: Nascent Oxygen [O]
Reduction Function: Nascent Hydrogen [H]
Highlight:

electrocoagulation system for wastewater

,

0.5m3/hr electrocoagulation system

,

wastewater treatment electrocoagulation system

Electrocoagulation System for Wastewater Treatment 0.5m³/hr Capacity
Technical Specifications
Attribute Value
Material DAF-200
Size 1000×650×1300 mm
Power 3 kW
Treating Capacity 0.5 m³/hr
Electrode Weight 0.3 tons
Empty Weight 0.3 tons
Operation Weight 0.8 tons
Voltage Range 220V-480VAC
Power Supply Embedded isolated voltage circuit
Control Signal European detachable terminals
System Overview
The electrocoagulation system is an advanced wastewater treatment process that utilizes metal hydroxide produced by soluble metal anodes during flocculation to effectively remove contaminants from water. The system primarily uses aluminum and iron anodes, which are readily available and cost-effective materials.
Electrocoagulation System 0.5m3/hr Wastewater Treatment with Aluminum Iron Anodes 0
Electrocoagulation System Fabrication Process
Electrocoagulation System 0.5m3/hr Wastewater Treatment with Aluminum Iron Anodes 1
Electrocoagulation System Work Process
Working Principle
The system operates through electrochemical reactions:
Fe → Fe²⁺ + 2e⁻
2OH⁻ → 2[O] + 2e⁻ → O₂ + 2e⁻
The nascent oxygen [O] provides strong oxidation comparable to UV, H₂O₂, and O₃ treatments.
2H⁺ + 2e⁻ → 2[H] → H₂
Nascent hydrogen breaks chemical bonds, reducing COD and chromophore functional groups. These oxidation and reduction reactions occur continuously on the electrode plates.
Key Features
  • Wide power adaptability: Operates within 220V-480VAC range with no power phase sequence issues
  • Enhanced safety: Embedded isolated voltage circuit with comprehensive protection against phase loss, overload, overcurrent, and overvoltage
  • Convenient maintenance: European detachable terminals allow easy rewiring of control circuits
  • Automatic control: Detects ion state in water and automatically adjusts current and voltage
  • Energy efficient: Utilizes naturally produced Fe(OH)₂ and Fe(OH)₃ coagulants without requiring polymer additives
  • Eco-friendly: Generates H and OH through water dissociation, eliminating need for dynamic aeration
System in Operation
Electrocoagulation System 0.5m3/hr Wastewater Treatment with Aluminum Iron Anodes 2
Electrocoagulation System Work Site
Electrocoagulation System 0.5m3/hr Wastewater Treatment with Aluminum Iron Anodes 3
System Installation Example

Tag:

industrial wastewater electrocoagulation system,

electrocoagulation equipment,

electrocoagulation system for wastewater treatment
