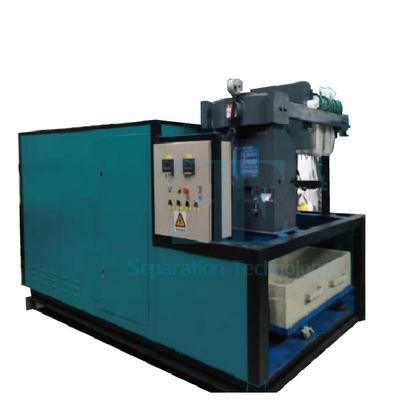

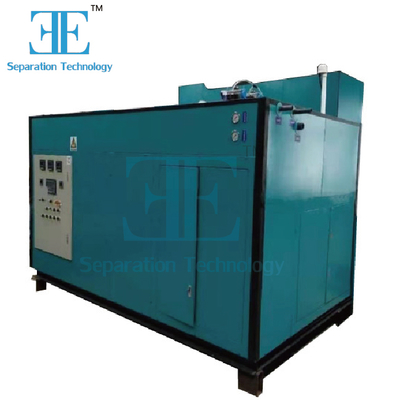

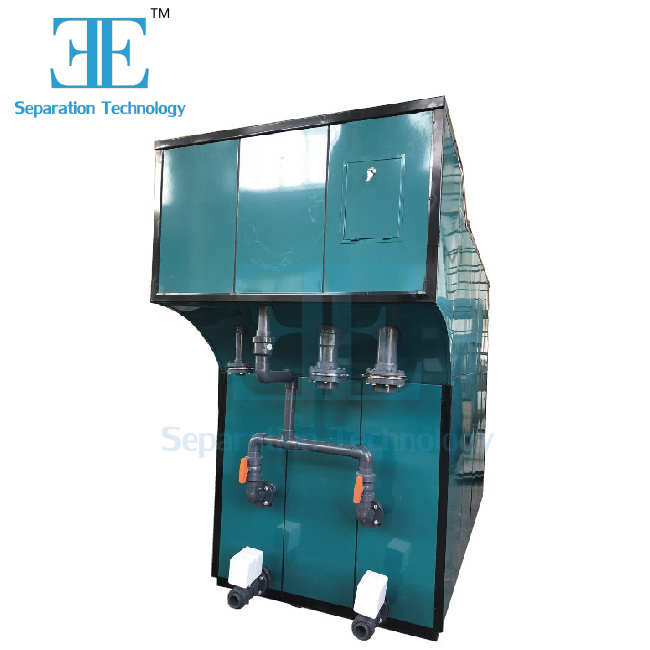

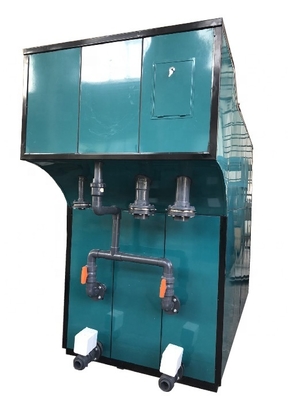

5m3/h Automatic Electrocoagulation Wastewater Treatment System

5m3/h Automatic Electrocoagulation Wastewater Treatment System
5m3/h Automatic Electrocoagulation Wastewater Treatment System 5m3/h Automatic Electrocoagulation Wastewater Treatment System 5m3/h Automatic Electrocoagulation Wastewater Treatment System 5m3/h Automatic Electrocoagulation Wastewater Treatment System 5m3/h Automatic Electrocoagulation Wastewater Treatment System 5m3/h Automatic Electrocoagulation Wastewater Treatment System

Large Image :  5m3/h Automatic Electrocoagulation Wastewater Treatment System

Product Details:
Place of Origin: Shanghai, China
Brand Name: ECOPRO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $36,897
Contact Now
Detailed Product Description
Productivity: 5m3/h Weight: 1900 Kg
Processing Type: Filtration Power: 1kW
Voltage: 220V, 380V, 110V Capacity: 5m3/h
Electrode Weight: 1900kgs Empty Weight: 1900kgs
Operation Weight: 7800kgs Core Components: Motor
Power Supply Range: 220V-480VAC Anode Material: Aluminum, Iron
Current Adjustment: Automatic Voltage Adjustment: Automatic
Protection Features: Phase Loss, Overload, Overcurrent, Overvoltage, Zero Voltage
Highlight:

automatic electrocoagulation wastewater system

,

Automatic Current Adjustment Electrocoagulation System

,

industrial electrocoagulation wastewater treatment

Automatic Current Adjustment Electrocoagulation Wastewater Treatment System
Product Specifications
Attribute Value
Productivity 5m³/h
Weight 1900 kg
Processing Type Filtration
Power 1kW
Voltage 220V, 380V, 110V
Capacity 5m³/h
Core Components Motor
Power Supply Range 220V-480VAC
Anode Material Aluminum, Iron
Current Adjustment Automatic
Voltage Adjustment Automatic
Protection Features Phase loss, overload, overcurrent, overvoltage, zero voltage
System Overview
The electrocoagulation system is an advanced wastewater treatment solution that utilizes metal hydroxide produced by soluble metal anodes during flocculation to effectively remove contaminants from water. The system typically uses aluminum or iron anodes, which are readily available and cost-effective materials.
Fabrication Process
5m3/h Automatic Electrocoagulation Wastewater Treatment System 0
Operational Process
5m3/h Automatic Electrocoagulation Wastewater Treatment System 1 5m3/h Automatic Electrocoagulation Wastewater Treatment System 2
Working Principle

Electrochemical reaction: Fe→Fe²⁺+2e

Anodizing reaction: 2OH⁻→2[O]+2e→O₂+2e (nascent oxygen [O] provides strong oxidation)

Cathode reduction: 2H⁺+2e→2[H]→H₂ (nascent hydrogen breaks chemical bonds)

These continuous oxidation and reduction reactions occur on the electrode plates, effectively treating wastewater by breaking down contaminants.

Key Features
  • Wide power adaptability: Operates within 220V-480VAC range
  • Enhanced safety: Embedded isolated voltage circuit with comprehensive protection against phase loss, overload, overcurrent, overvoltage, and zero voltage conditions
  • Automatic control: Intelligent detection of water ion state with automatic current and voltage adjustment
  • Energy efficient: Utilizes Fe(OH)₂ and Fe(OH)₃ as natural coagulants, eliminating need for polymer additives
5m3/h Automatic Electrocoagulation Wastewater Treatment System 3
Reference Installation
5m3/h Automatic Electrocoagulation Wastewater Treatment System 4 5m3/h Automatic Electrocoagulation Wastewater Treatment System 5
