5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V

5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V
5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V

Large Image :  5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V

Product Details:
Place of Origin: Shanghai, China
Brand Name: ECOPRO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $36,897
Contact Now
Detailed Product Description
Productivity: 5m3/h Weight: 1900 Kg
Processing Type: Filtration Power: 1 KW
Voltage: 220 V, 380 V, 110 V Capacity: 5m3/h
Electrode Weight: 1900 Kg Empty Weight: 1900 Kg
Operation Weight: 7800 Kg Core Components: Motor
Power Supply Range: 220V-480VAC Anode Material: Aluminum, Iron
Oxidation Function: Nascent Oxygen [O] Reduction Function: Nascent Hydrogen [H]
Automatic Control: Yes
Highlight:

5m3/h electrocoagulation wastewater treatment system

,

electrocoagulation system 220V-380V

,

industrial wastewater electrocoagulation system

Electrical Coagulation System Electrocoagulation Air Flotation Wastewater Treatment Equipment
Electrocoagulation Machine Electrocoagulation Tanks Electrocoagulation Water Treatment
Electrocoagulation system is a wastewater treatment process that utilizes a metal hydroxide produced by a soluble metal anode during flocculation to remove contaminants from water. The anode material typically uses aluminum, iron and other readily available and inexpensive metals.
Electrocoagulation System Fabricate Process
5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 0 5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 0
Electrocoagulation System Work Process
5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 2 5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 2 5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 4 5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 4
Electrocoagulation System Principle
Electrochemical reaction: Fe->Fe2++2e
Anodizing reaction: 2OH-->2[O]+2e->02+2e, The nascent oxygen [O] has the same strong oxidation function as UV, H2O2 and O3.
Cathode reduction: 2H++2e->2[H]->H2, nascent hydrogen can break bonds, COD, chromophore functional groups and multi-chain health.
The above oxidation and reduction functions occur continuously on the plates.
Electrocoagulation System Features
  • Wide adaptability of power supply: 220V-480VAC range is available
  • Safe and convenient: embedded isolated voltage circuit to ensure electrical safety; various abnormal indications and protection (phase loss, overload, overcurrent, overvoltage, zero voltage, etc.)
  • Automatic control: can automatically detect the ion state in the water to adjust the current and voltage
  • Energy saving: Fe(OH)2 and Fe(OH)3 are excellent coagulants. No need for polymer is a major feature of this equipment
5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 6 5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 6

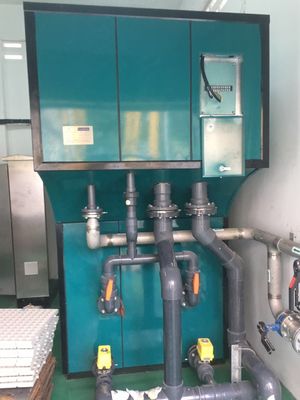

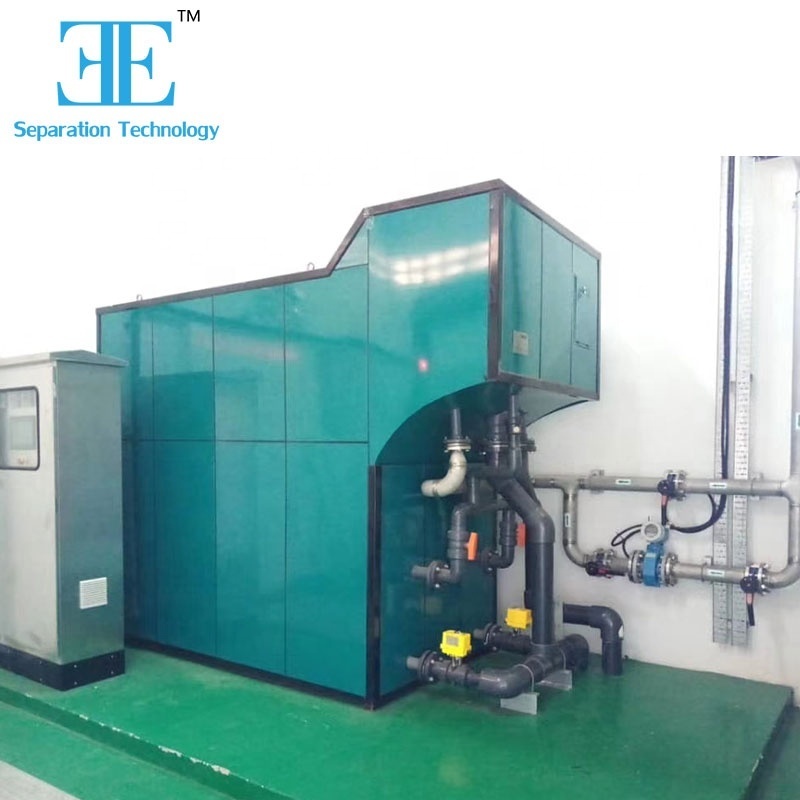

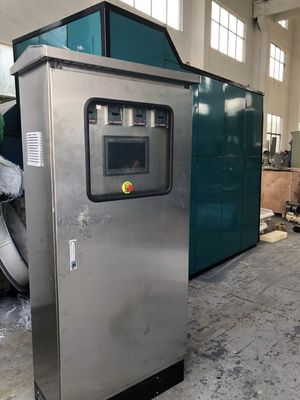

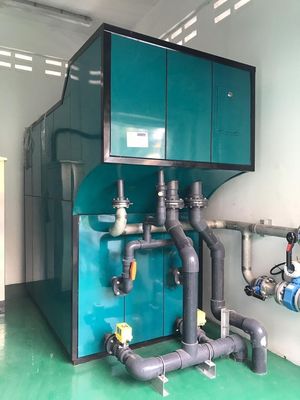

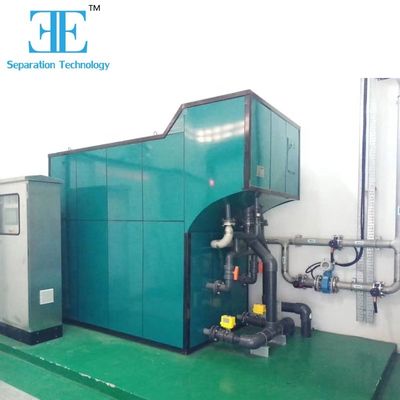

Electrical Flocculation System Work Site for Reference
5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 8 5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 8 5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 10 5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 10
Company Introduction
5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 12 5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 12
Product Packaging
5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 14 5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 14 5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 16 5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V 16
