Electrocoagulation System 5m3/h Capacity for Wastewater Treatment

Electrocoagulation System 5m3/h Capacity for Wastewater Treatment
Electrocoagulation System 5m3/h Capacity for Wastewater Treatment Electrocoagulation System 5m3/h Capacity for Wastewater Treatment Electrocoagulation System 5m3/h Capacity for Wastewater Treatment Electrocoagulation System 5m3/h Capacity for Wastewater Treatment Electrocoagulation System 5m3/h Capacity for Wastewater Treatment Electrocoagulation System 5m3/h Capacity for Wastewater Treatment

Large Image :  Electrocoagulation System 5m3/h Capacity for Wastewater Treatment

Product Details:
Place of Origin: Shanghai, China
Brand Name: ECOPRO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $36,897
Contact Now
Detailed Product Description
Productivity: 5m3/h Weight: 1900 Kg
Processing Type: Filtration Power: 1 KW
Voltage: 220 V, 380 V, 110 V Capacity: 5m3/h
Electrode Weight: 1900 Kg Empty Weight: 1900 Kg
Operation Weight: 7800 Kg Core Components: Motor
Power Supply Range: 220V-480VAC Anode Material: Aluminum, Iron
Oxidation Function: Nascent Oxygen [O] Reduction Function: Nascent Hydrogen [H]
Automatic Control: Yes
Highlight:

Electrocoagulation System 5m3/h capacity

,

Electrocoagulation System for wastewater treatment

,

Electrocoagulation System with high capacity

Electrocoagulation System for Wastewater Treatment
Our electrocoagulation system is an advanced wastewater treatment solution that utilizes metal hydroxide flocculation to effectively remove contaminants. The system employs aluminum or iron anodes to create an efficient and cost-effective purification process.

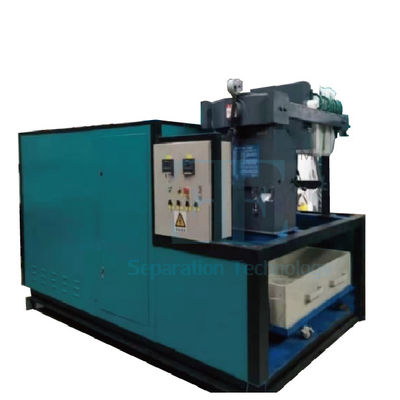

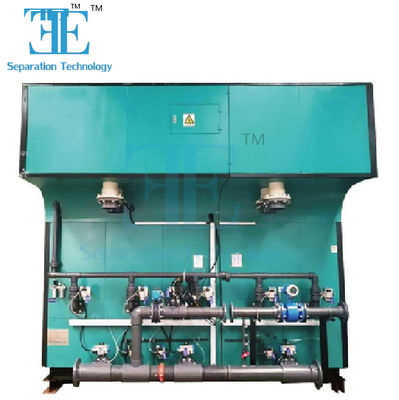

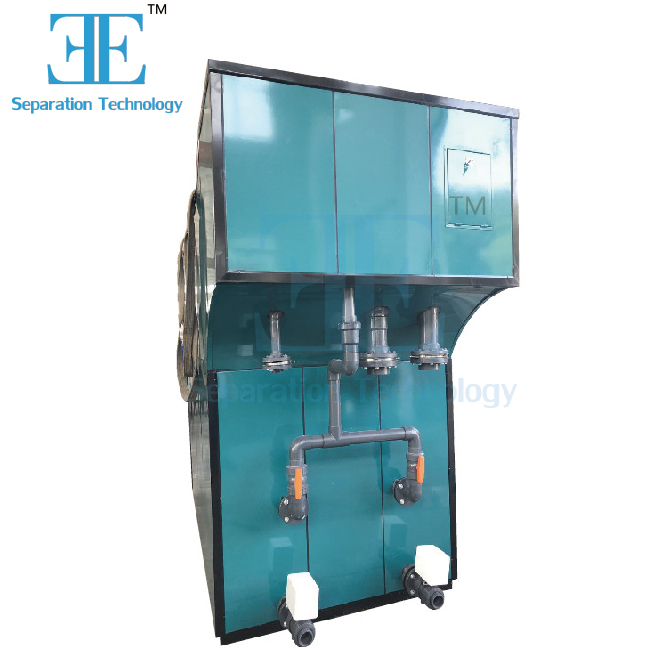

System Fabrication Process
Electrocoagulation System 5m3/h Capacity for Wastewater Treatment 0 Electrocoagulation System 5m3/h Capacity for Wastewater Treatment 1

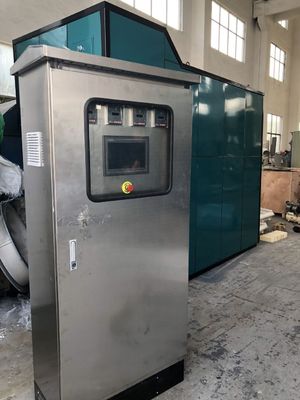

System Operation Process
Electrocoagulation System 5m3/h Capacity for Wastewater Treatment 2 Electrocoagulation System 5m3/h Capacity for Wastewater Treatment 3
Electrocoagulation System Principle
Electrochemical reaction: Fe→Fe2++2e
Anodizing reaction: 2OH→2[O]+2e→O2+2e
Cathode reduction: 2H++2e→2[H]→H2
These oxidation and reduction reactions occur continuously on the plates, providing powerful treatment capabilities.
Key System Features
  • Wide power supply adaptability: Operates within 220V-480VAC range
  • Enhanced safety: Embedded isolated voltage circuit with comprehensive protection (phase loss, overload, overcurrent, overvoltage, zero voltage)
  • Automatic control: Detects ion state in water to automatically adjust current and voltage
  • Energy efficient: Utilizes Fe(OH)2 and Fe(OH)3 as natural coagulants, eliminating need for polymer additives

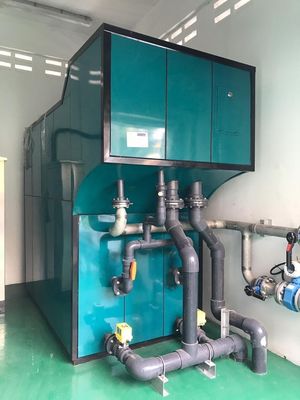

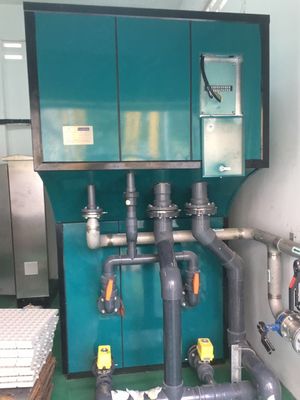

System Work Site Examples
Electrocoagulation System 5m3/h Capacity for Wastewater Treatment 4 Electrocoagulation System 5m3/h Capacity for Wastewater Treatment 5
Product Packaging
Electrocoagulation System 5m3/h Capacity for Wastewater Treatment 6 Electrocoagulation System 5m3/h Capacity for Wastewater Treatment 7
