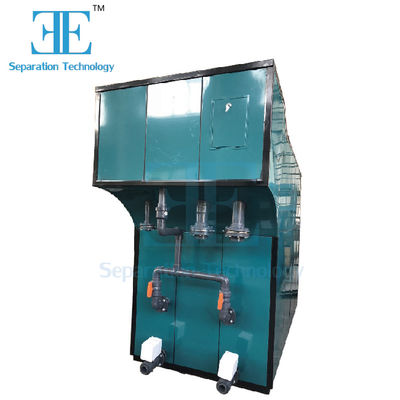

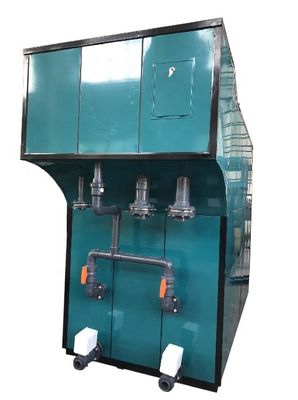

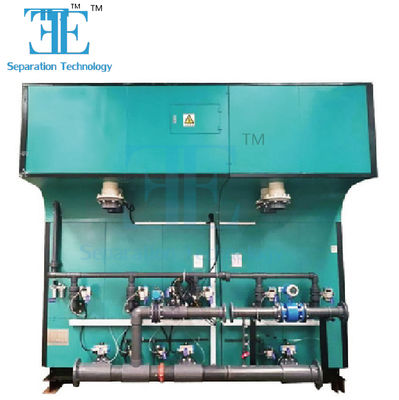

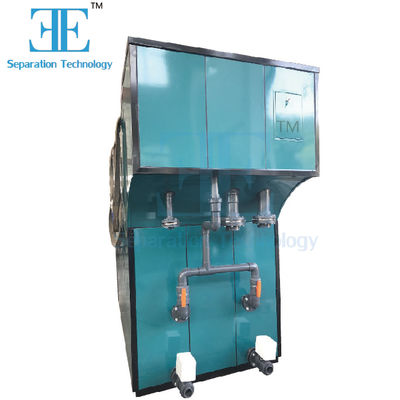

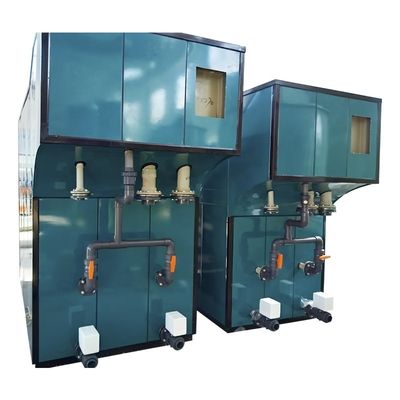

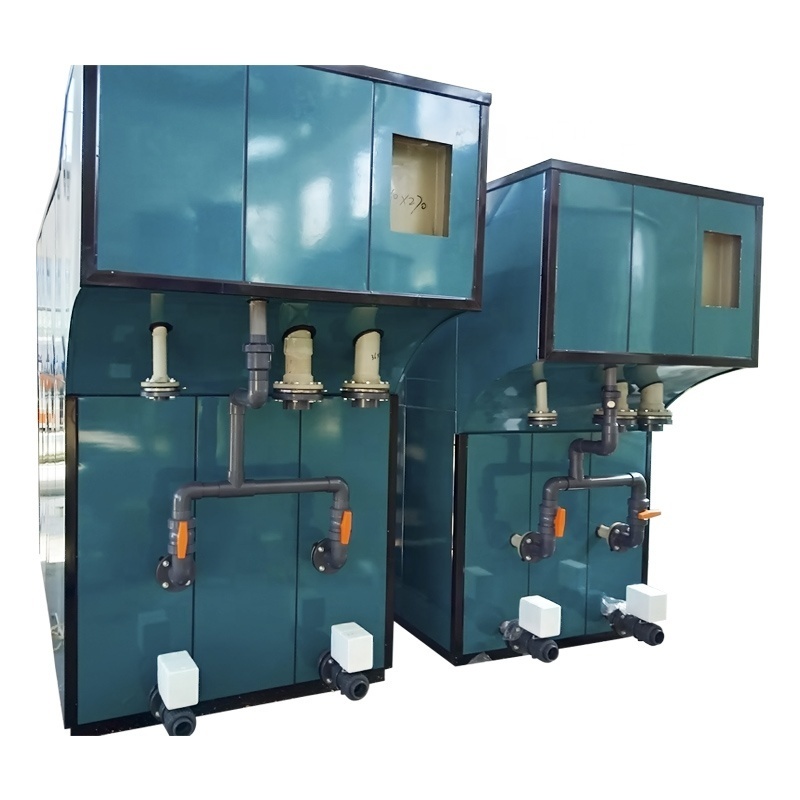

40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW

40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW
40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW 40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW 40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW 40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW 40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW 40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW

Large Image :  40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW

Product Details:
Place of Origin: Shanghai, China
Brand Name: ECOPRO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $36,897-69,583
Contact Now
Detailed Product Description
Productivity: 40m3/h Weight: 2298 Kg
Power: 3 KW, 30 KW, 20 KW Voltage: 220 V, 380 V, 110 V
Electrode Weight: 11500 Kg Empty Weight: 3500 Kg
Operation Weight: 31000 Kg Treating Capacity: 1m3/h
Power Consumption: 3kw/h Dimension: 1000*650*1500mm
Electrode Weight: 650 Kg Empty Weight: 400 Kg
Operation Weight: 1500 Kg Voltage Range: 220V-480VAC
Core Components: Gearbox, Pump, Bearing, Motor
Highlight:

40m3/h electrocoagulation wastewater system

,

industrial electrocoagulation system 3-30 kW

,

electrocoagulation system for industrial wastewater

Electrical Coagulation System (EC) for Industrial Wastewater Treatment

Our electrocoagulation system is an advanced wastewater treatment solution that utilizes metal hydroxide produced by soluble metal anodes during flocculation to effectively remove contaminants from water. The system primarily uses aluminum or iron anodes, which are cost-effective and readily available.

40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW 0 40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW 1
Technical Specifications
Parameter Value
Treating Capacity 1m³/h
Power Consumption 3kW/h
Dimension 1000×650×1500mm
Electrode Weight 650kg
Empty Weight 400kg
Operation Weight 1500kg
40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW 2 40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW 3
Electrocoagulation System Principle

The system operates through three key electrochemical processes:

Electrochemical reaction: Fe→Fe²⁺+2e⁻
Anodizing reaction: 2OH⁻→2[O]+2e⁻→O₂+2e⁻
Cathode reduction: 2H⁺+2e⁻→2[H]→H₂

These oxidation and reduction reactions continuously occur on the plates, providing effective wastewater treatment through:

  • Strong oxidation from nascent oxygen [O] (comparable to UV, H₂O₂, and O₃)
  • Powerful reduction from nascent hydrogen that breaks chemical bonds
  • Effective removal of COD, chromophore functional groups, and multi-chain compounds
System Features
  • Wide power supply adaptability: Operates within 220V-480VAC range
  • Safe and convenient: Embedded isolated voltage circuit ensures electrical safety with comprehensive protection against phase loss, overload, overcurrent, overvoltage, and zero voltage conditions
  • Automatic control: Detects ion state in water and automatically adjusts current and voltage
  • Energy efficient: Utilizes Fe(OH)₂ and Fe(OH)₃ as natural coagulants, eliminating the need for additional polymers
40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW 4 40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW 5
Company Profile

Shanghai Ecopro Environmental Engineering Co., Ltd., established in 2017, specializes in comprehensive water and wastewater treatment equipment and separation services. As a professional environmental engineering company, we are committed to providing high-quality equipment, services, and systematic solutions. Our product range includes:

  • Static and rotary drum screens
  • Polymer dosing systems
  • DAF systems
  • Electrochemistry systems
  • Screw presses and plate filter presses
  • Sludge dryers
  • Mutag Biochip technology
  • Sodium hypochlorite generators
  • Various pump systems
40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW 6 40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW 7 40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW 8
Product Packaging
40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW 9 40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW 10
