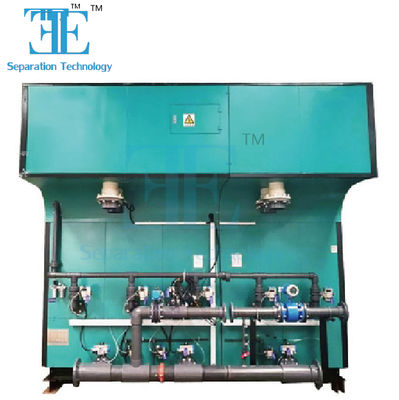

40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW
40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

Large Image :  40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

Product Details:
Place of Origin: Shanghai, China
Brand Name: ECOPRO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $36,897
Contact Now
Detailed Product Description
Productivity: 40m3/h Weight: 2298 Kg
Processing Type: Filtration Power: 3 KW, 30 KW, 20 KW
Voltage: 220 V, 380 V, 110 V Capacity: 40m3/h
Electrode Weight: 11500 Kg Empty Weight: 3500 Kg
Operation Weight: 31000 Kg Treating Capacity: 1m3/h
Power Consumption: 3kw/h Dimension: 1000*650*1500 Mm
Electrode Weight: 650 Kg Empty Weight: 400 Kg
Operation Weight: 1500 Kg
Highlight:

40m3/h electrocoagulation wastewater system

,

electrocoagulation system 3-30 kW

,

industrial wastewater treatment electrocoagulation

Electrocoagulation Wastewater Treatment Station

Our electrocoagulation system is an advanced wastewater treatment solution that utilizes metal hydroxide produced by soluble metal anodes during flocculation to effectively remove contaminants from water. The system typically employs aluminum, iron, or other readily available metals as anode materials.

40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 0
Technical Specifications
Parameter Value
Treating Capacity 1m³/h
Power Consumption 3kw/h
Dimension 1000×650×1500mm
Electrode Weight 650kg
Empty Weight 400kg
Operation Weight 1500kg
40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 1 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 2
Electrocoagulation System Principle

The system operates through electrochemical reactions:

  • Electrochemical reaction: Fe→Fe²⁺+2e
  • Anodizing reaction: 2OH⁻→2[O]+2e→O₂+2e (nascent oxygen [O] provides strong oxidation)
  • Cathode reduction: 2H⁺+2e→2[H]→H₂ (nascent hydrogen breaks bonds and functional groups)

These oxidation and reduction functions occur continuously on the plates for effective treatment.

System Features
  • Wide power adaptability: Operates within 220V-480VAC range
  • Safe operation: Embedded isolated voltage circuit ensures electrical safety with comprehensive protection (phase loss, overload, overcurrent, overvoltage, zero voltage)
  • Automatic control: Detects ion state in water to automatically adjust current and voltage
  • Energy efficient: Utilizes Fe(OH)₂ and Fe(OH)₃ as excellent coagulants without requiring polymers
40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 3
About Shanghai Ecopro Environmental Engineering

Established in 2017, Shanghai Ecopro Environmental Engineering Co. Ltd specializes in comprehensive water and wastewater treatment equipment and separation services. As a professional environmental engineering company, we are committed to providing high-quality equipment, services, and systematic solutions to the industry.

Our product range includes static screens, rotary drum screens, polymer dosing systems, DAF systems, electrochemistry systems, screw presses, plate filter presses, sludge dryers, Mutag Biochips, sodium hypochlorite generators, and various pumps.

40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 4 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 5 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 6
Product Packaging
40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 7 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 8
