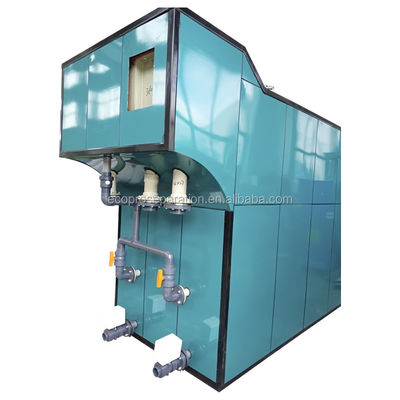

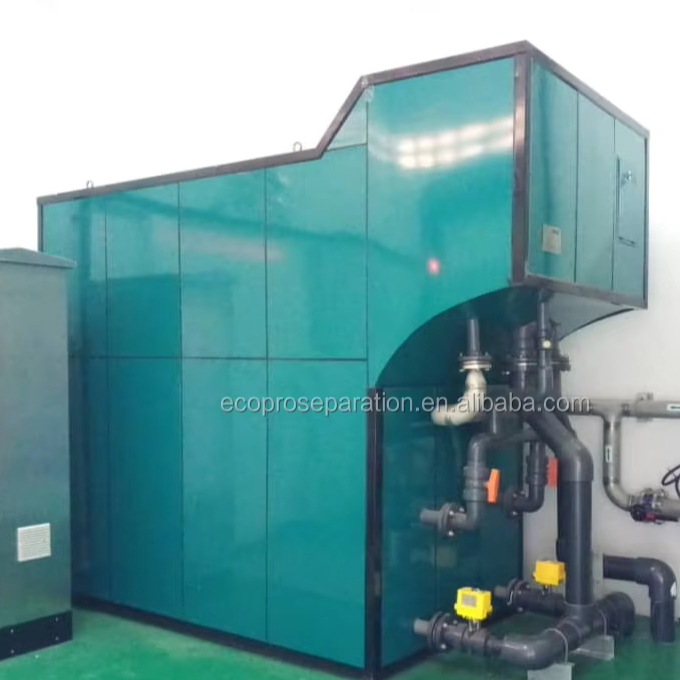

40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW
40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

Large Image :  40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

Product Details:
Place of Origin: Shanghai, China
Brand Name: ECOPRO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $36,897
Contact Now
Detailed Product Description
Productivity: 40m3/h Weight: 2298 Kg
Processing Type: Filtration Power: 3 KW, 30 KW, 20 KW
Voltage: 220 V, 380 V, 110 V Capacity: 40m3/h
Electrode Weight: 11500 Kg Empty Weight: 3500 Kg
Operation Weight: 31000 Kg Treating Capacity: 1m3/h
Power Consumption: 3kw/h Dimension: 1000*650*1500 Mm
Electrode Weight: 650 Kg Empty Weight: 400 Kg
Operation Weight: 1500 Kg
Highlight:

40m3/h electrocoagulation wastewater system

,

electrocoagulation treatment system 3-30 kW

,

industrial wastewater electrocoagulation system

Electrocoagulation Wastewater Treatment System

Customized industrial wastewater treatment equipment utilizing electrocoagulation technology for efficient contaminant removal.

Electrocoagulation Water Treatment Process

Our electrocoagulation system utilizes metal hydroxide produced by soluble metal anodes (typically aluminum or iron) during flocculation to effectively remove contaminants from wastewater.

40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 0 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 1
Technical Specifications
Parameter Value
Treating Capacity 1m³/h
Power Consumption 3kw/h
Dimension 1000×650×1500mm
Electrode Weight 650kg
Empty Weight 400kg
Operation Weight 1500kg
40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 2 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 3
Electrocoagulation System Principle
Fe→Fe²⁺+2e

Anodizing reaction: 2OH⁻→2[O]+2e→O₂+2e. The nascent oxygen [O] provides strong oxidation comparable to UV, H₂O₂ and O₃.

2H⁺+2e→2[H]→H₂

Cathode reduction produces nascent hydrogen that breaks chemical bonds, COD, chromophore functional groups and multi-chain compounds.

These oxidation and reduction reactions occur continuously on the electrode plates.

System Features
  • Wide power supply adaptability: Operates within 220V-480VAC range
  • Enhanced safety: Embedded isolated voltage circuit with comprehensive protection (phase loss, overload, overcurrent, overvoltage, zero voltage)
  • Automatic control: Detects ion state in water to dynamically adjust current and voltage
  • Energy efficient: Utilizes Fe(OH)₂ and Fe(OH)₃ as natural coagulants, eliminating need for polymer additives
40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 4
About Shanghai Ecopro Environmental Engineering Co., Ltd.

Established in 2017, we specialize in comprehensive water and wastewater treatment equipment and separation services. Our product range includes static screens, rotary drum screens, polymer dosing systems, DAF systems, electrochemistry systems, screw presses, plate filter presses, sludge dryers, Mutag Biochips, sodium hypochlorite generators, and various pumps.

40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 5 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 6 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 7
Product Packaging
40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 8 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW 9

Tag:

industrial wastewater electrocoagulation system,

electrocoagulation equipment,

electrocoagulation system for wastewater treatment
